Pannello solare 3.5Watt (colore charcoal)

Description

Features

Waterproof
UV resistant
Compact and lightweight

Size and Weight

210x113x5 mm (8.3×4.4×0.2 in)
150g (5.7 oz)

Output*

Monocrystalline cells – 19% efficient
Open Circuit Voltage: 7.0V
Peak Voltage: 6.0V
Peak Current: 615mA
Peak Power: 3.69 Watts

Construction

Urethane coating
3mm Aluminum/Plastic composite substrate

Mounting and Cables

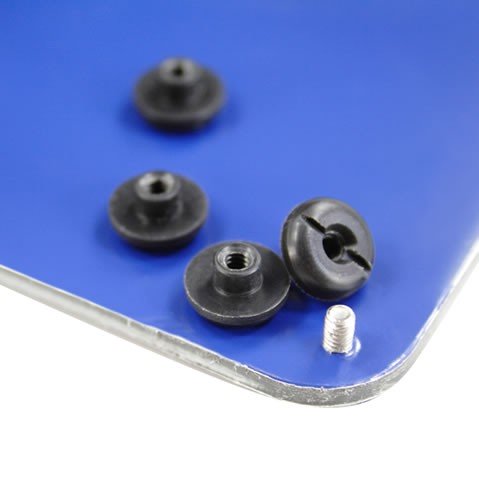

Four screws on back corners of panel allow multiple mounting options

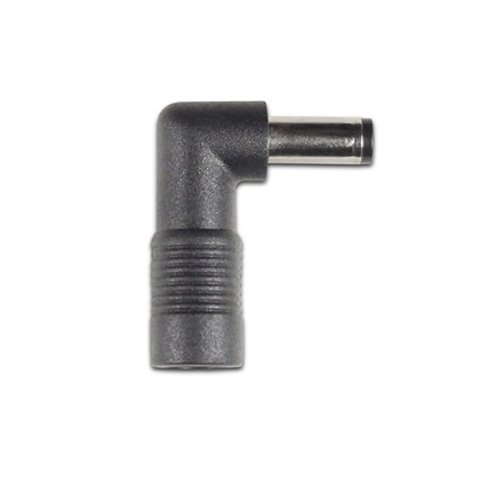

Output cable is 8.5 inches, 22cm long and has 3.5×1.1mm plug

*Output Description

Panel output is computed based on cell manufacturer's data assuming 0% reduction of cell efficiency after packaging of cell strings. Electrical output tolerance +/- 10%. Under irradiance of 100 mW/cm2, absolute air mass of 1.5, at 25 °C, as per cell manufacturer's specifications.
For maximum power output, orient the panels towards the sun. When not angled towards the sun, output will be reduced.This is a lightweight, monocrystalline solar panel that outputs 6 Volts and has a peak power of 3.5 Watts. It is compact, waterproof, and UV resistant. Pairs well with the Voltaic V15 battery and other small USB devices.
