UBEC DC/DC Step-Down (Buck) Converter – 5V @ 3A output

Description

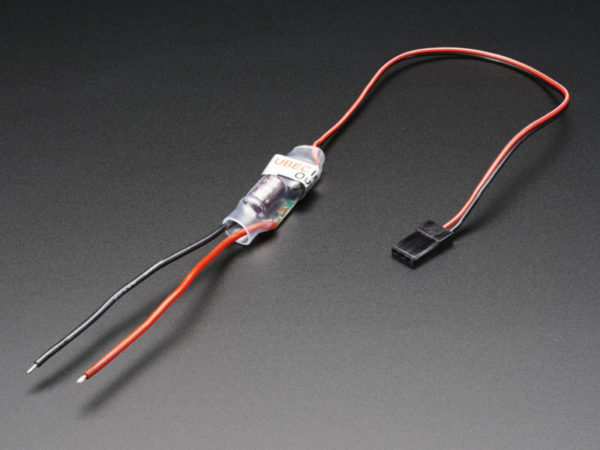

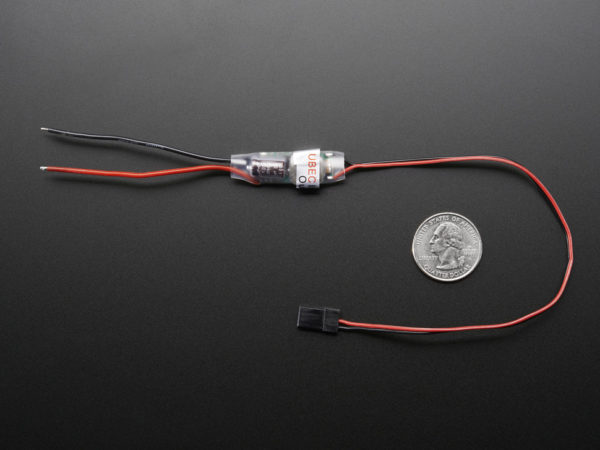

Your power supply problems just got SOLVED! This little circuit board may look tiny but inside is a high efficiency DC/DC step-down converter which can output up to 3 Amp at 5V without the need of any heat-sink or forced cooling. (It does get a bit toasty at 3A though) UBEC stands for “universal battery eliminator circuit” and this UBEC is designed to replace a 5V supply in RC planes and ‘copters but its also great for any kind of microcontroller or electronics project that runs off of 5V. We tried a half dozen different ‘BECs and found this one to be the best in terms of range and stability. You can check the technical tab for the analysis of input/output range and current draw.

To use, connect 6V-23V to the shorter, thicker wires and 5V will be generated on the thinner, longer wires. You’ll get 5V (+-5%) regulated output from 6 – 23VDC input. 3A output current, 5A peak – if you’re trying to draw 3A you’ll need to give it a little more than 6V though, 7V works well. The UBEC has built in filter capacitors on the input and output, but its a switching supply so its a little noisy compared to a linear regulator.

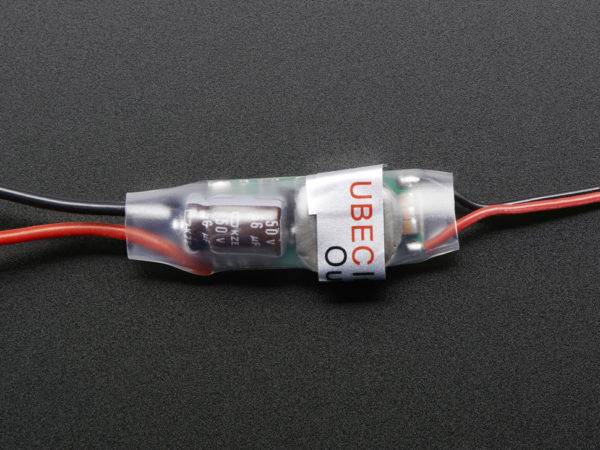

We pulled the heatshrink off of one and found an MP2307 you can check the datasheet for conversion efficiency and other specifications.

We pulled the heatshrink off of one and found an MP2307 you can check the datasheet for conversion efficiency and other specifications.

Here are some numbers we found when attaching various loads to the UBEC:

Iout
Vin
Iin
Vout

0.5A
6V
0.47A
4.9V

0.5A
7V
0.39A
5.2V

0.5A
9V
0.35A
5.2V

0.5A
12V
0.28A
5.25V

Iout
Vin
Iin
Vout

1A
6V
0.9A
4.8V

1A
7V
0.79A
5.2V

1A
9V
0.67A
5.1V

1A
12V
0.52A
5.2V

Iout
Vin
Iin
Vout

2A
6V
1.85A
4.9V

2A
7V
1.67A
5.1V

2A
9V
1.28A
5.0V

2A
12V
0.97A
4.9V

Iout
Vin
Iin
Vout

3A
7V
2.6A
5.0V

3A
9V
1.88A
4.7V

3A
12V
1.43A
4.8V
