10 Segment Light Bar Graph LED Display – Pure Green – KWL-R1025PGB

Description

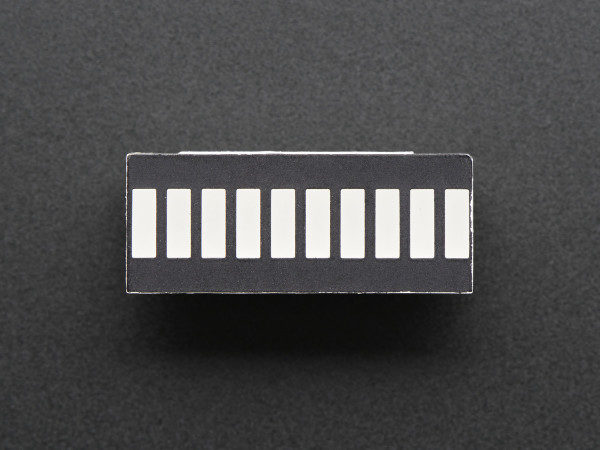

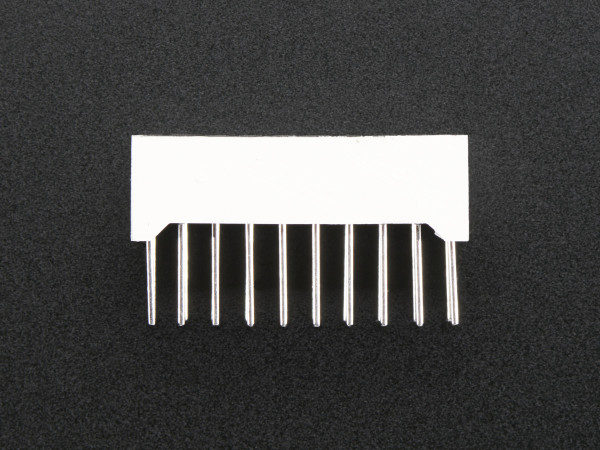

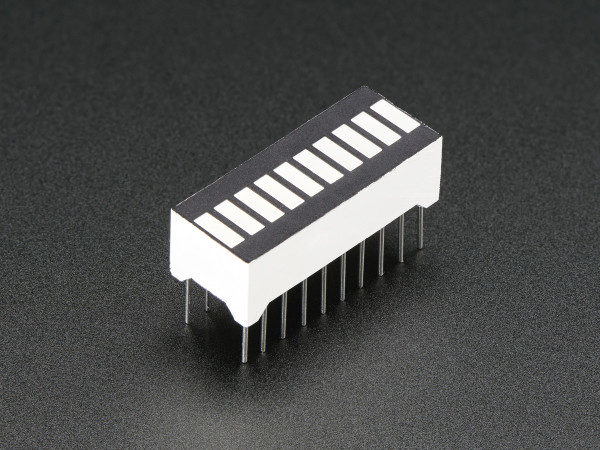

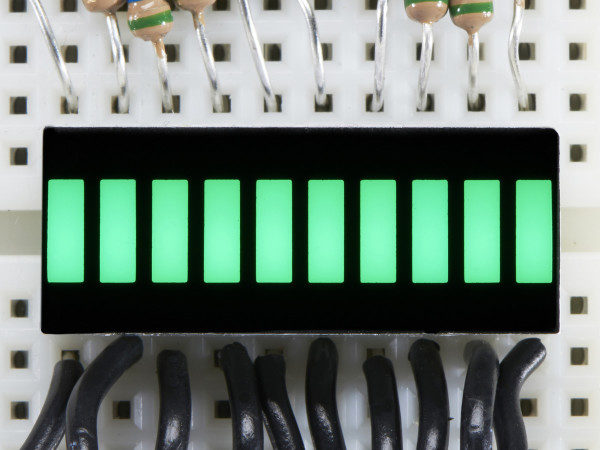

Make a small linear display with a glowing pure-green color using this elegant LED bargraph. This pure-green color is much more vivid and closer to blue than 'yellow green' LEDs. Only 1″ long, it is quite visible but not so large it wont plug into a breadboard! 10 LEDs are contained in the plastic body. This display is bright, beautiful and funky with nice diffused rectangular lenses for a striking look. There are 20 pins, 10 on each side, with 0.1″ spacing so you can easily plug it into a breadboard with plenty of space for wiring left over.

There is a playground article about bargraph displays. You can also just treat each individual LED as a single LED.

Datasheet

Dimensions:

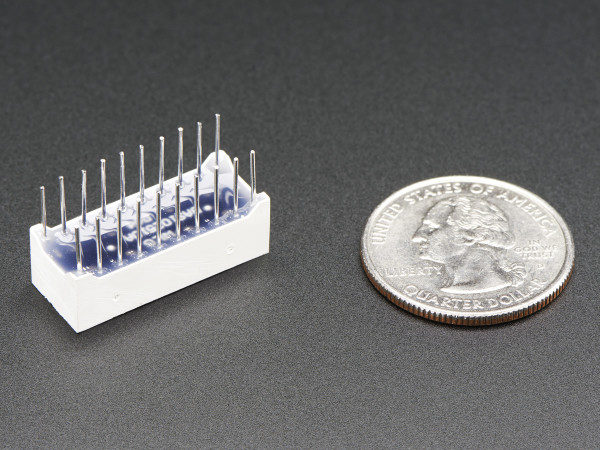

25.5mm x 10mm x 6.5mm / 1″ x 0.4″ x 0.25″
Height with Pins: 14.5mm / 0.6″
Weight: 2.5g
Forward voltage: 3.2V typical
Brightness: 26mcd typical
