Assembled Adafruit FeatherWing OLED – 128×32 OLED Add-on For Feather

Description

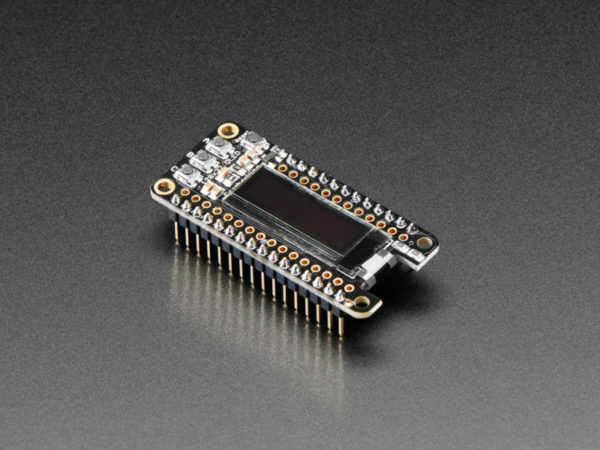

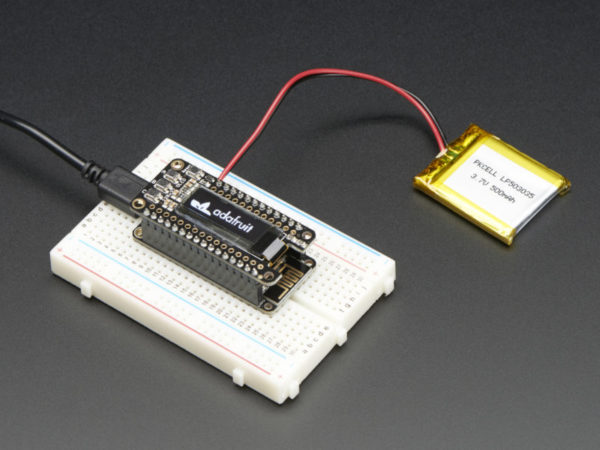

A Feather board without ambition is a Feather board without FeatherWings! This is the Assembled FeatherWing OLED: it adds a 128×32 monochrome OLED plus 3 user buttons to any Feather main board. Comes fully assembled so you can connect a FeatherWing on top of your Feather board and let the board take flight, no soldering required!

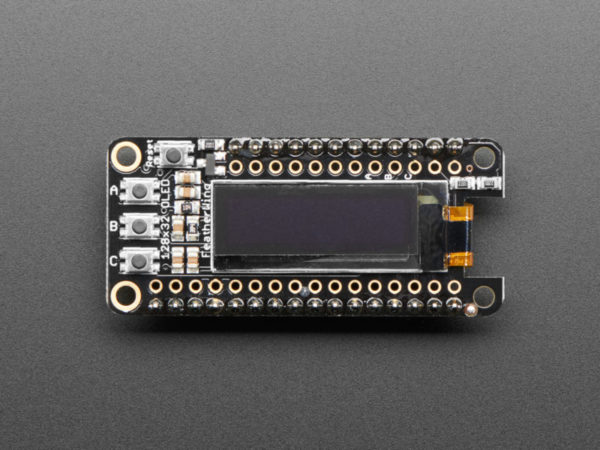

These displays are small, only about 1″ diagonal, but very readable due to the high contrast of an OLED display. This screen is made of 128×32 individual white OLED pixels and because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; we really like this miniature display for its crispness! We also toss on a reset button and three mini tactile buttons called A B and C so you can add a mini user interface to your feather.

Tested works with our Feather 32u4, M0 and ESP8266 boards. The OLED uses only the two I2C pins on the Feather, and you can pretty much stack it with any other FeatherWing, even ones that use I2C since that is a shared bus.
TECHNICAL DETAILS

OLED UG-2832HSWEG02 Datasheet

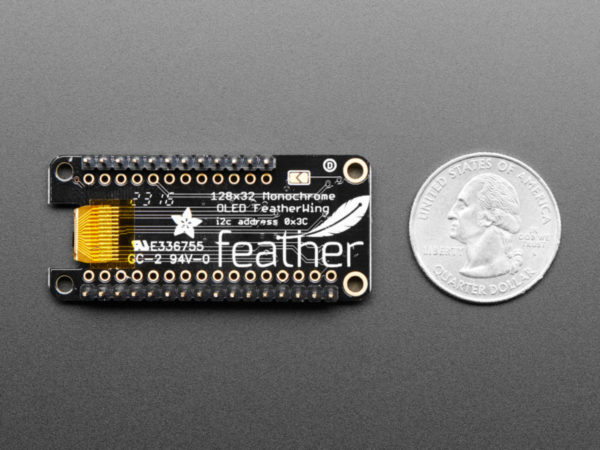

PCB dimensions: 22.9mm x 50.9mm / 0.9″ x 2″
Display area: ~25.8mm / ~1.0″
Weight: 4.8g
On 32u4 or M0 Feathers, buttons A, B & C connect to 9, 6, 5 respectively
On Huzzah ESP8266 Feather, buttons A, B & C connect to 0, 16, 2 respectively
