LED – Basic Yellow 5mm

Description

LEDs – those blinky things. A must have for power indication, pin status, opto-electronic sensors, and fun blinky displays.

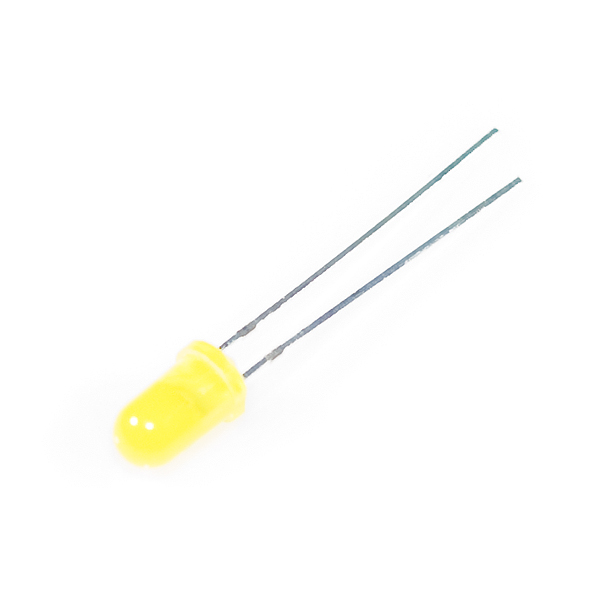

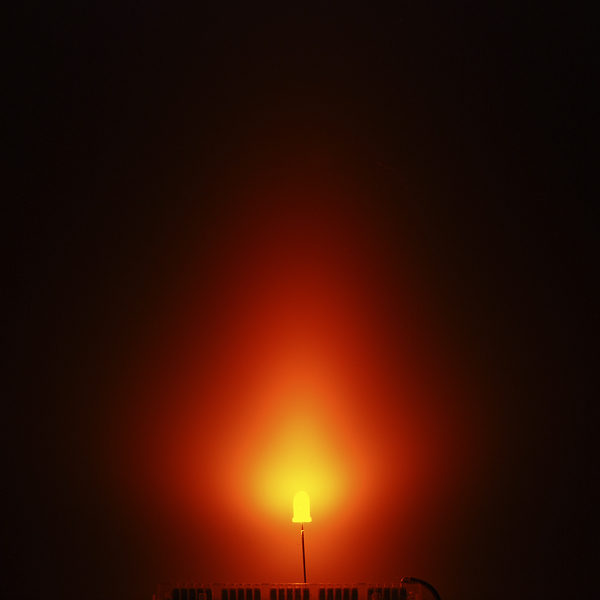

This is a very basic 5mm LED with a yellow lens. It has a typical forward voltage of 2.0V and a rated forward current of 20mA.

Features:

1.8-2.2VDC forward drop
Max current: 20mA
Suggested using current: 16-18mA
Luminous Intensity: 150-200mcd

Documents:

Datasheet
LED Tutorial
