LED Light Bar – White (SMD)

Description

Want to make a 12 ft GPS wall clock? This is the perfect item to light it up! Even if that’s not the project you are looking to build, these light bars pack quite a bit of light into three small white LED’s and they are very easy to set up with no soldering required.

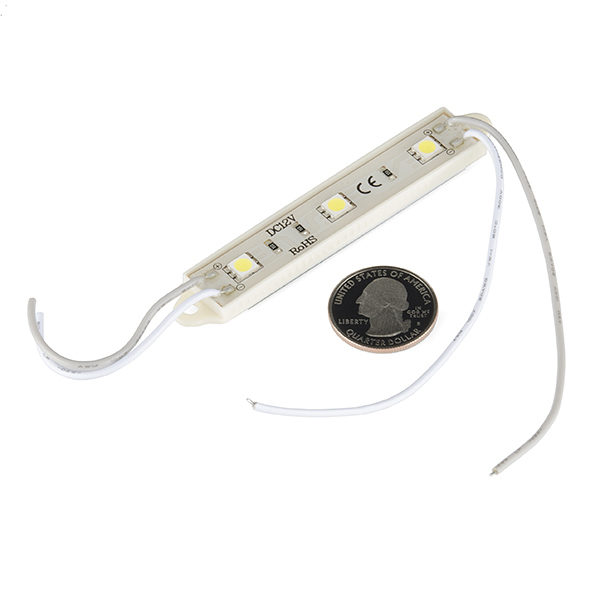

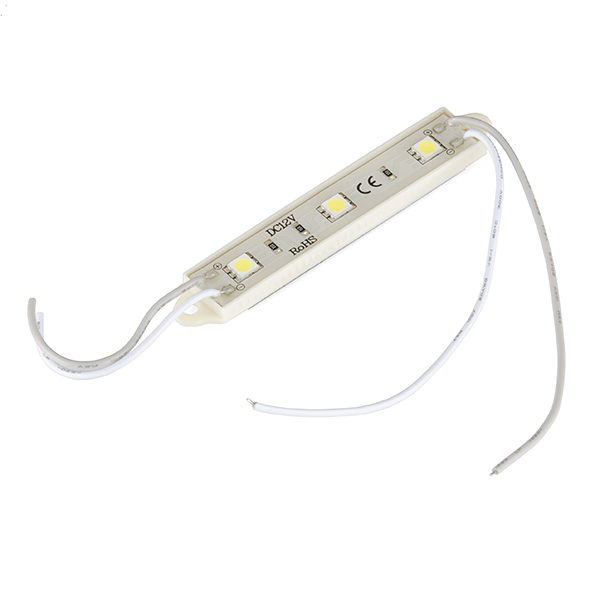

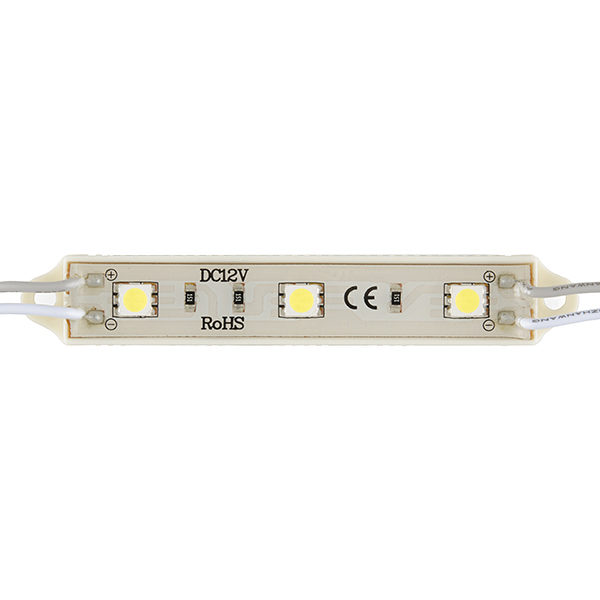

The white LED Light Bar is a pre-packaged strip of 3 high-output LEDs powered by 12VDC. Each unit comes with a fully assembled and tested PCB with current limiting resistors, a wall-mount holder and peel-away sticky foam backing, and polarized connection cables. Each LED Light Bar absorbs approximately 55mA @ 12V.

Dimensions:

3.6x 0.59″ (92x15mm)
Mounting Hole OD is 0.15″ (3.8mm)

Documents:

Hookup Guide
