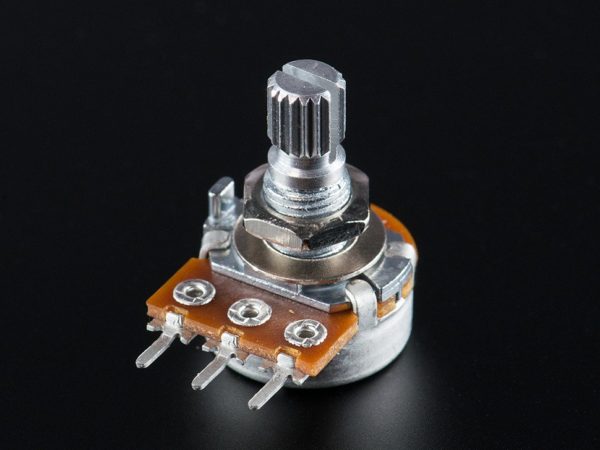

Panel Mount 10K potentiometer (Breadboard Friendly) – 10K Linear

Description

This potentiometer is a two-in-one, good in a breadboard or with a panel. Its a fairly standard linear taper 10K ohm potentiometer, with a grippy shaft. Its smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2″ apart with pin-points, so you can plug it into a breadboard or perfboard. Once you’re done prototyping, you can drill a hole into your project box and mount the potentiometer that way.

10K ohm potentiometer, linear taper
100,000 Cycle Life
16mm Body
Rotational travel: 300 °
Static Stop Strength: 90 oz-in
Rotational Torque: 0.5 to 1.25 oz-in

Downloads:

P160KN-0QC15B10K Datasheet
