Big Dome Pushbutton – Blue

Description

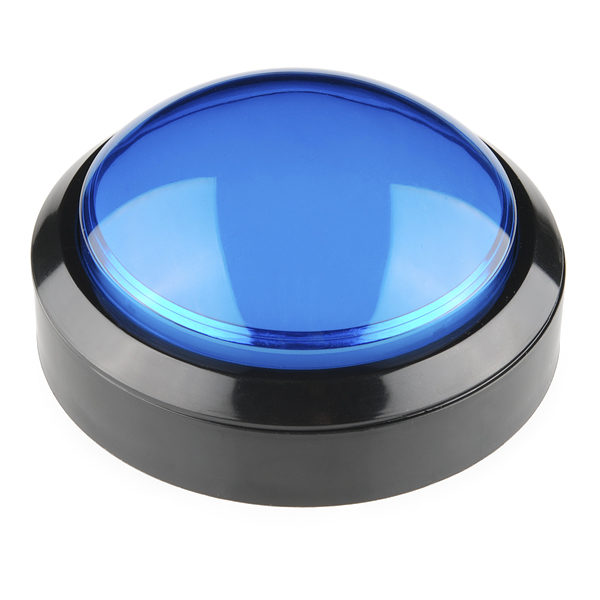

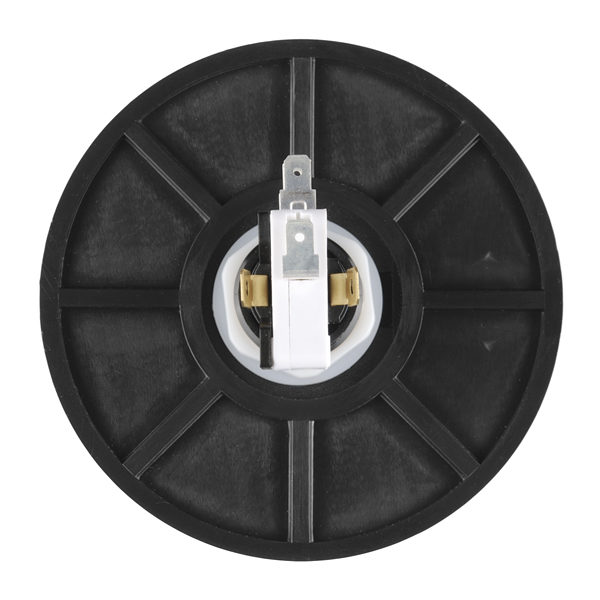

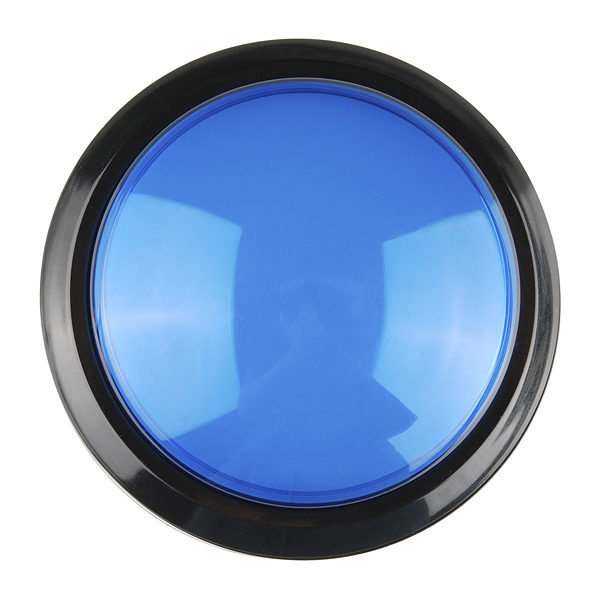

It’s the end of the world, and you need a button to press. This is it. A 100mm diameter (outside diameter) dome illuminated push button comes with an LED, securing nut and a pre-installed long life horizontal microswitch. Button can also be adjusted to a low profile button by removing the middle ring.

Features:

LED indicator light runs at 12VDC
Bulb holder is easy to install or remove

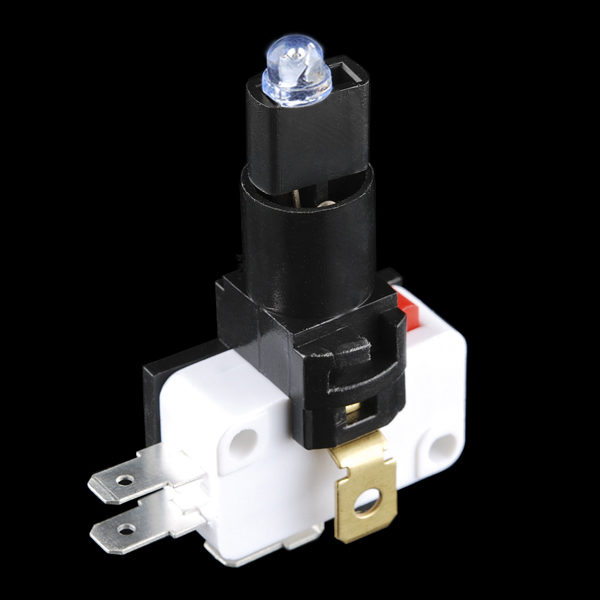

3 Terminals Button Actuator microswitch included
Microswitch reliability tested to 10,000,000 cycles
Microswitch can be replaced
Polycarbonate lens cap for optical clarity

Dimensions:

100 mm Diameter x 72 mm Height
Net weight: 100grams
Mounting hole diameter: 24 mm

Documents:

Product page
Whack-Dome Demo Video
Whack-Dome Demo Sketch
