SparkFun SOIC to DIP Adapter – 20-Pin

Description

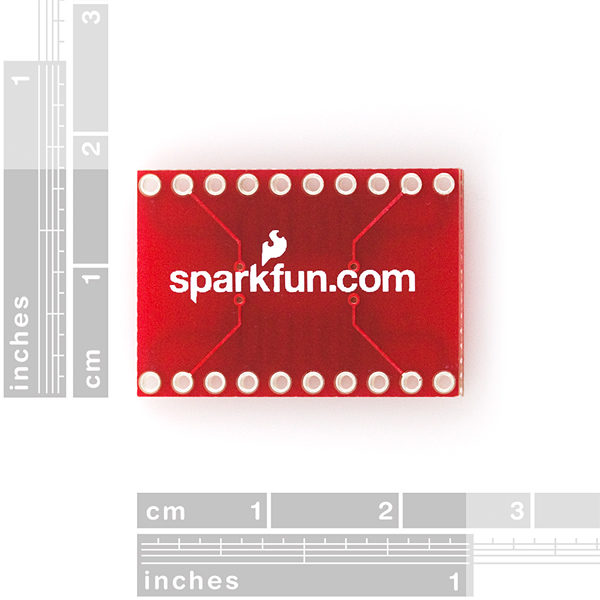

This is a low-cost, basic SOIC breakout boards. This custom PCB will interface a standard SOIC package IC to 0.1″ headers, which are easier to work with and integrate well with breadboards.

There is DIP-standard 0.6″ spacing between the two rows of pins.

40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets.

Dimensions: 0.7×1.1″
INFO TECNICHE:
Schematic
Eagle Files
GitHub (Design Files)
