SparkFun USB-C Breakout
7,38 €
- Description
- Additional information
Description
With this USB breakout you will finally be able to incorporate a USB-C connector into your projects without needing to solder each tiny SMD pad. The SparkFun USB-C Breakout supplies up to three times the power as previous USB iterations and also solves the universally frustrating dilemma of plugging a USB cable in correctly because it’s reversible!

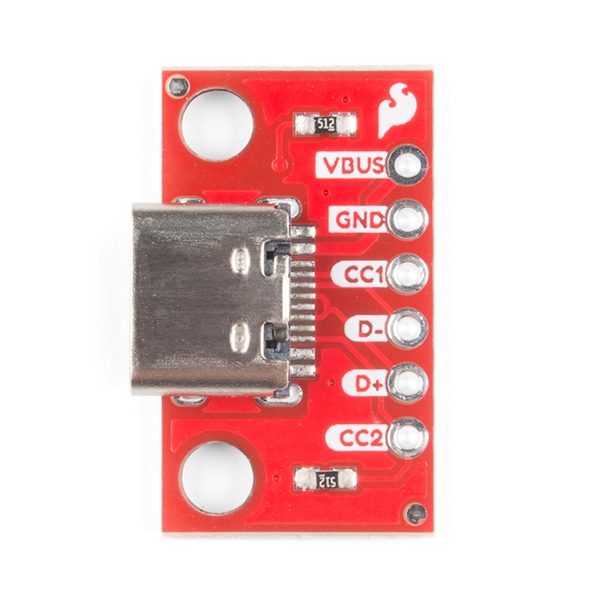

This board breaks out the USB-C connector’s VBUS, GND, CC1, CC2, D+, and D- pins intro a 0.1″ pitch header while providing up to a nominal 1.5A of power and up to 3A depending on the upstream device.
Additional information
| Weight | 0,1 kg |
|---|---|
| Dimensions | 3 × 1 × 2 cm |
| Produttore | Senza marca/Generico |
| MPN | BOB-15100-I2 |
| Brand | Sparkfun |
