Stackable 0.100″ Female Header Set for Arduino Shields

Description

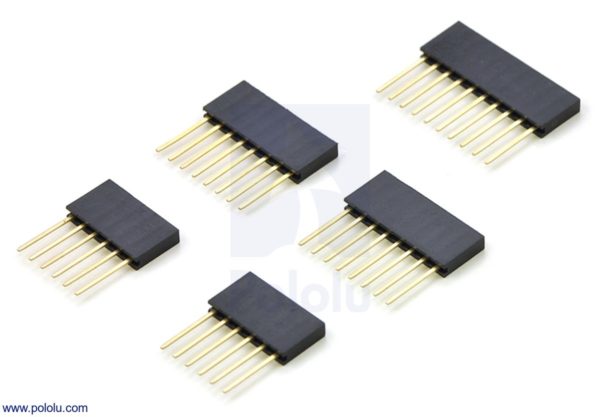

These stackable 0.1″ (2.54 mm) female headers are just the right height for connecting Arduino shields to Arduinos and other shields. The set includes two 1×6 female headers, two 1×8 female headers, and one 1×10 female header, so it has everything necessary for both old- and new-style shields.

Compare all products in Connectors or 0.1? (2.54 mm) Female Headers or Arduino Shields.
This stackable 0.1″ (2.54mm) female header set is designed to work with Arduino shields and is compatible with A-Star 32U4 Primesand Arduinos that have the standard Arduino pin spacing, including the Arduino Uno R3 and Arduino Leonardo, and a subset of theArduino Mega 2560 R3 pins. The set includes:

two 1×6 female headers
two 1×8 female headers
one 1×10 female header

It has everything necessary for both old- and new-style shields: old-style shields use two 1×6 headers and two 1×8 headers while new-style shields use one 1×6 header, two 1×8 headers, and one 1×10 header.

When assembling a shield, the female side should be on the top side of the PCB with the male ends protruding through the appropriate through-holes and soldered to the underside of the PCB.

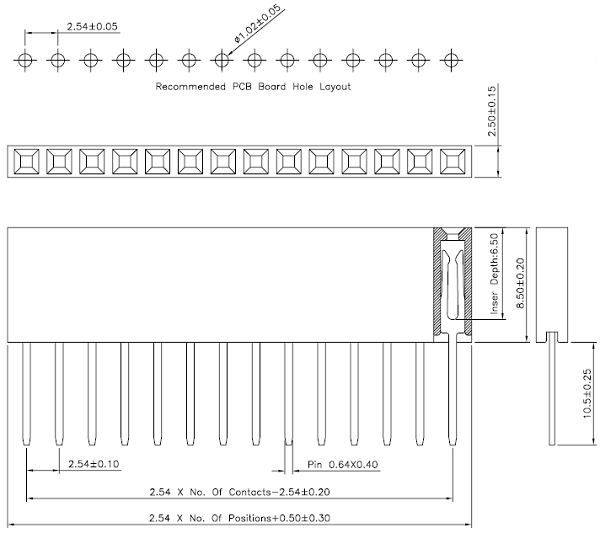

Dimensions (in mm) of the stackable 0.100″ female header set for Arduino shields.
