Stacking Header for Raspberry Pi – 2×20 Extra Tall Header

Description

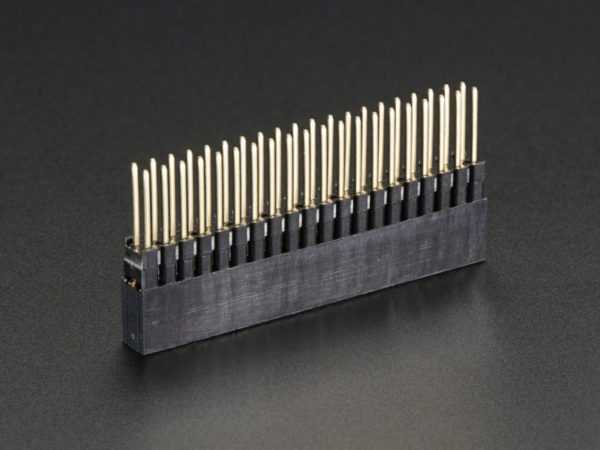

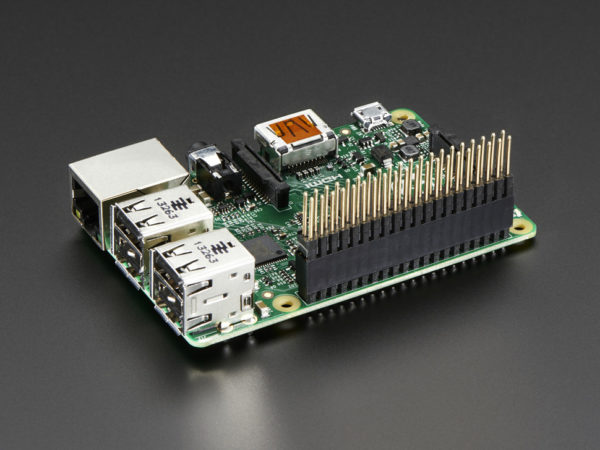

Stack multiple plates, breakouts etc onto your Raspberry Pi with this custom-made extra-tall and extra-long 2×20 female header. The female header part has extra spaces to make it 23mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long, 10mm, so that when a standard 1.5mm thickness PCB is installed, there will be 8.5mm remaining, plenty to plug into.

You’ll get one header per order.

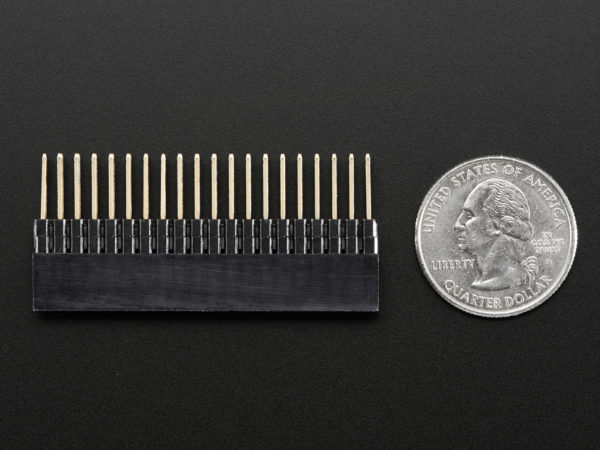

Dimensions: 5mm x 51mm x 23mm / 0.2″ x 2″ x 0.9″
Pin Length: 10mm
Pin Spacing: 2.5mm / 0.1″
Pin Thickness: 0.6mm / 0.02″
Weight: 6.5g
