Latch Terminals – 5mm Pitch (2-Pin)
0,68 €
Informami quando l'articolo è disponibile.
- Description
- Additional information
- Documents
- Features
Description

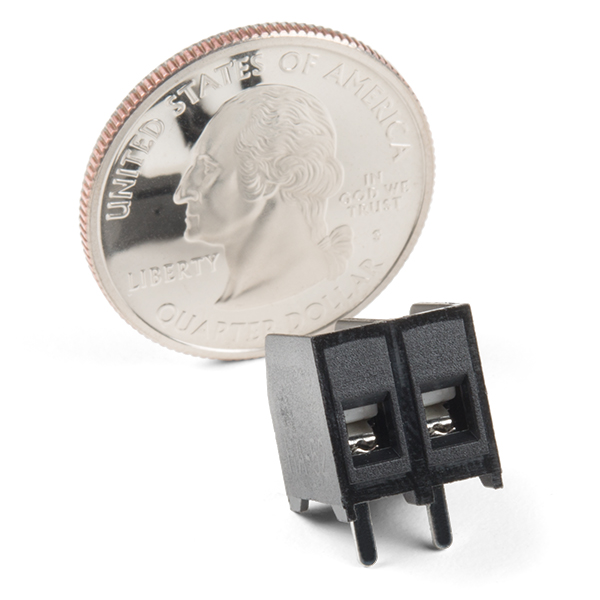

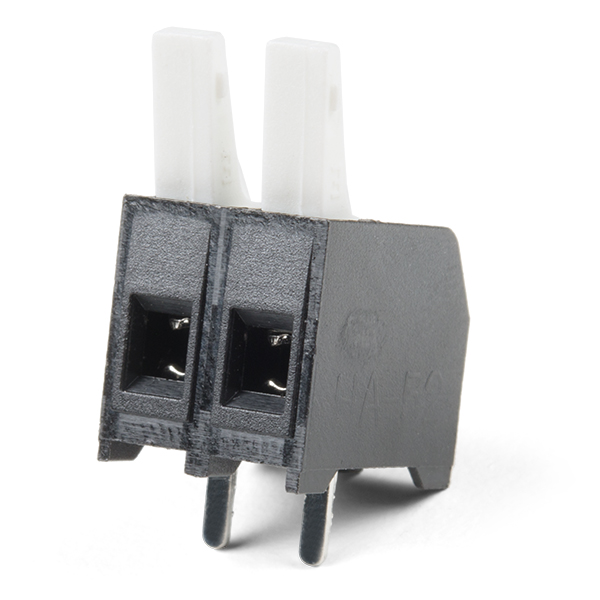

You'll have no need for a screwdriver with this terminal! This is a 2-pin Latch Terminal with 5mm pitch pins. Each pin is rated up to 250V @ 11A and will line up well with the standard 0.19″ spacing. Please note that the pins are thick enough (1.20mm OD) that you may need to increase the hole diameter on some boards. Each of the terminals can accept 18-22AWG wire.
Additional information
| Produttore | Melopero Electronics |
|---|---|
| BRAND | Sparkfun |
| MPN | PRT-15898-L7 |
- Latch Terminal
- 5mm Pitch
- 2-Pin
- Tin Plated Brass Terminals
- 18-22AWG Wire Range
- Operation Temperature: -55°C~+100°C
