Mini Pan-Tilt Kit – Assembled with Micro Servos

Description

This fully-assembled pan-tilt kit is the perfect way to give your project full range motion with two micro servos. The pan-tilt can rotate roughly 180° from side-to-side and can tilt up&downwards around 150°.  It also comes fully assembled with two Micro Servos (SG-90 or SG-92 type) included and a 38mm x 36mm space to mount a camera or sensor or whatever you like.

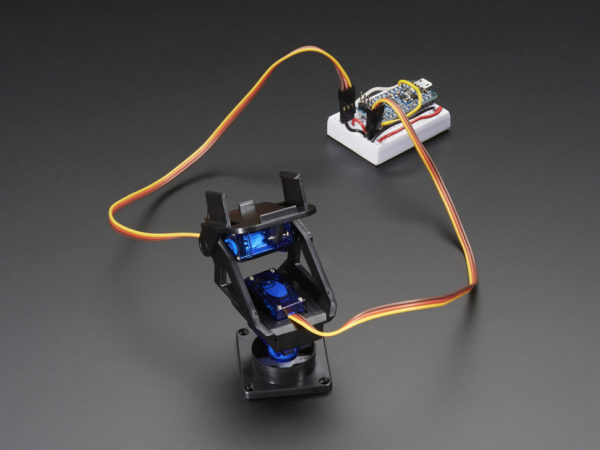

Since the motors are plain, every-day analog servos, you can use any microcontroller or driver. They're good for beginners who want to make stuff move and the pan-tilt is an easy way to give whatever you're making both left-right and up-down motion. In our demo, we hooked this up with a Trinket Pro and made it do a little dance with the Arduino Servo library

DETTAGLI  TECNICI

Dimensions:

Base: 37mm x 33mm x 3mm / 1.5″ x 1.3″ x 0.1″
Mounting Hole Distances: 30mm x 26mm / 1.2″ x 1″
Standing Height (zero tilt): 67mm / 2.6″
Top Platform: 38mm x 36mm / 1.5″x 1.4″
Weight: 37g
