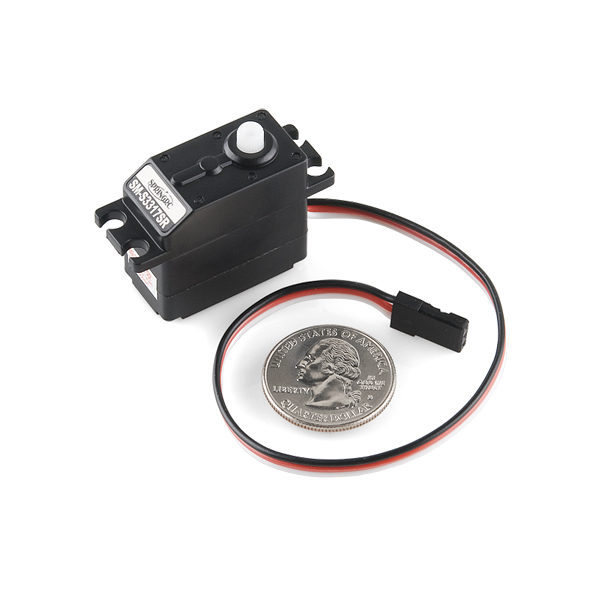

Servo – Generic Continuous Rotation (Micro Size)

Description

Here, for all your mechatronic needs, is a simple, high quality continuous rotation servo motor. This servo is able to take in 6 volts and deliver 30.6 oz-in. of maximum torque at 0.14 sec/60°

A standard 3-pin power and control cable is attached and all hardware listed below is included.

Features:

Voltage: 4.8-6.0 Volts
Torque: 27.8/30.6 oz-in. (4.8/6.0V)
Speed: 0.16/0.14 sec/60° (4.8/6.0V)
Rotation: 360°
Dual Ball Bearing
Plastic Gears

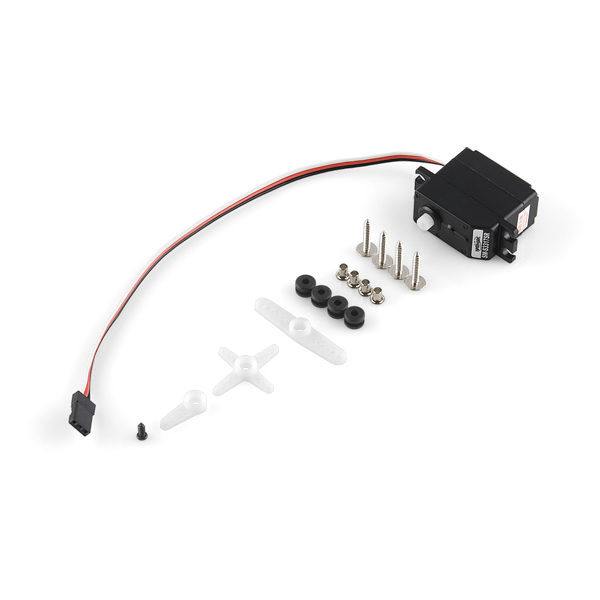

Includes:

1x SM-S3317S Full Rotation Servo
1x Single Arm Horn
1x Double Arm Horn
1x Four Point Horn
4x Rubber Grommets
4x 2x15mm Phillips Screw
4x Brass Eyelets

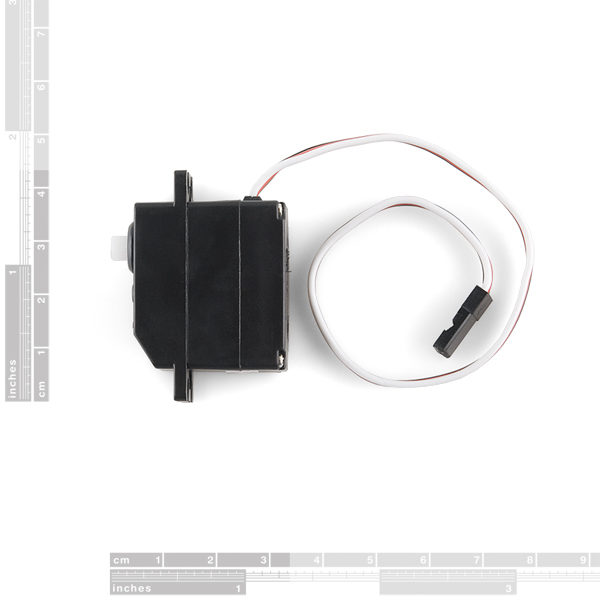

Dimensions:

31.3 x 16.3 x 28.5mm
Wire Length: 160mm
Weight: 18g

Documents:

Product page
Dimensional Drawing
Datasheet (SM-S3317S)
