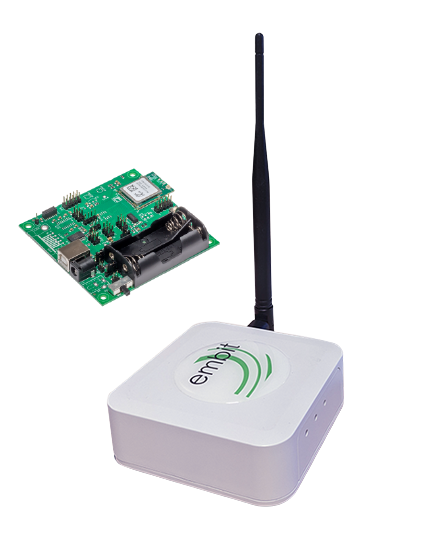

Embit Picocell Development Kit with LR1272E-EVB (868MHz)

Description

EMB-LR-Picocell gives you the chance to have a compact indoor LoRaWAN®
gateway. lt provides LoRa® long range connectivity using ultra-long range
spread spectrum communication and high interference immunity on the
868/915 MHz radio bands.
EMB-LR-Picocell is the ideai gateway to enable you to create in a very short
time LoRaWAN® applications, with up to 8 LoRa Channels in the 868Mhz (or
915MHz) frequency, a sensitivity of -140dBm and a RF output power up to
+27dBm.
EMB-LR1302-mPCle is designed around the Semtech SX1302 which is
a new generation of digitai baseband LoRa® chip for gateways. lt offers 8
simultaneous LoRa® channels in the 868 MHz (or 915 MHz) frequency allowing
it to receive up to 64 LoRa® packets simultaneously. lt is able to achieve a
sensitivity of -140 dBm and a RF output power of +27 dBm making it the ideai
device to use in LoRa® gateways applications.
EMB-LR1302-mPCle is easier to be embedded in highly-integrated
environment where power dissipation might be a challenge.
EMB-LR1302-mPCle embeds the capability to support two new spreading
factors: SF5 and SF6. This enables users to reach higher data rate
communication. Two versions of EMB-LR1302-mPCle are available: 868MHz
or 915MHz.
