Arduino DUE

Description

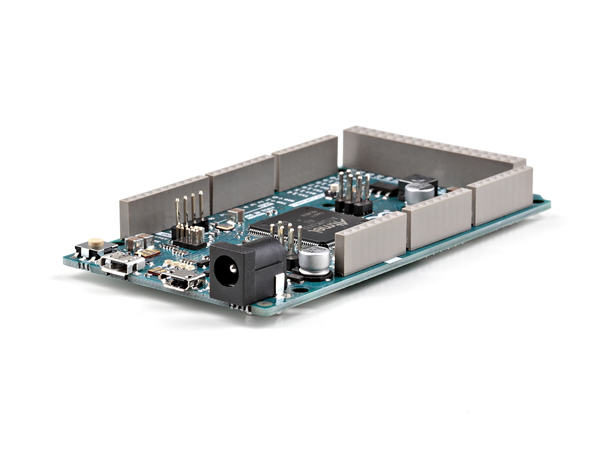

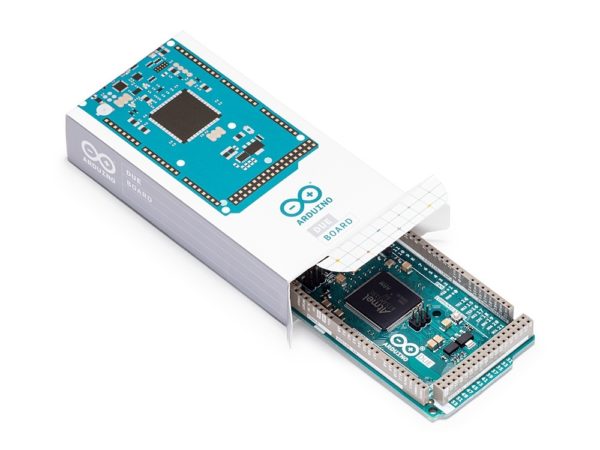

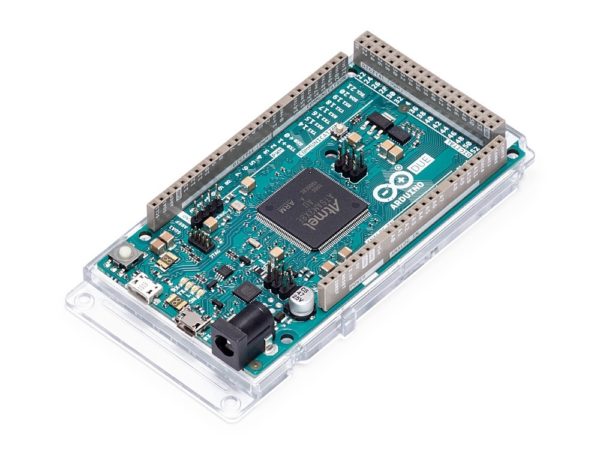

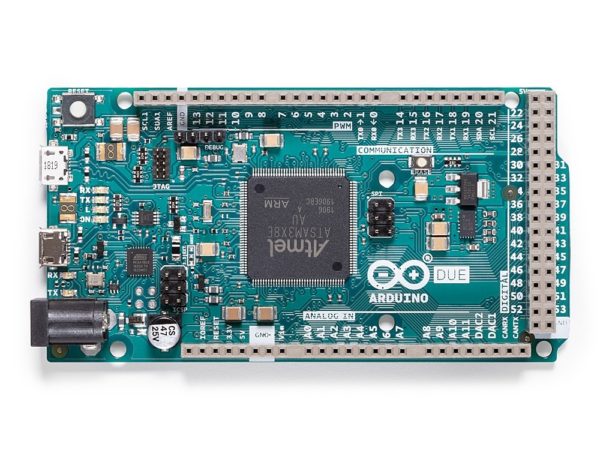

The Arduino Due is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU (datasheet). It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

Warning: Unlike other Arduino boards, the Arduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.

The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.

Microcontroller

AT91SAM3X8E

Operating Voltage

3.3V

Input Voltage (recommended)

7-12V

Input Voltage (limits)

6-16V

Digital I/O Pins

54 (of which 12 provide PWM output)

Analog Input Pins

12

Analog Outputs Pins

2 (DAC)

Total DC Output Current on all I/O lines

130 mA

DC Current for 3.3V Pin

800 mA

DC Current for 5V Pin

800 mA

Flash Memory

512 KB all available for the user applications

SRAM

96 KB (two banks: 64KB and 32KB)

Clock Speed

84 MHz

Length

101.52 mm

Width

53.3 mm

Weight

36 g

INFO TECNICHE:
Pagina del Produttore
AT91SAM3X8E Datasheet
Eagle CAD files
Schematic [PDF]
