Arduino Mega 2560 Rev3

Description

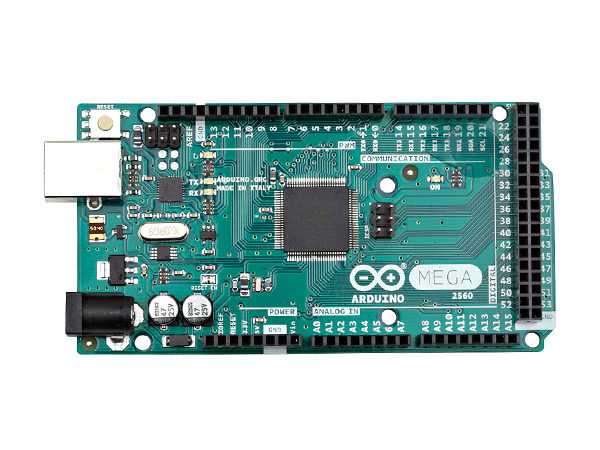

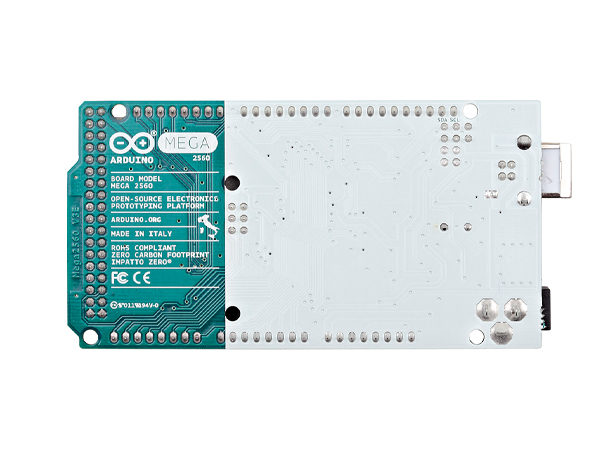

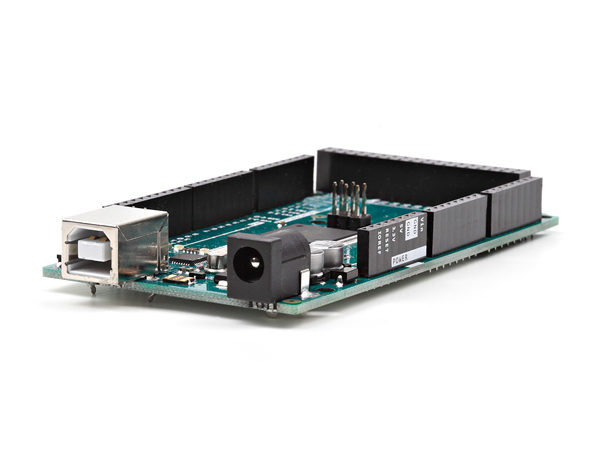

The Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.
The Mega 2560 is an update to the Arduino Mega, which it replaces.
You can find here your board warranty informations.

Getting Started
You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.

Need Help?

On the Software on the Arduino Forum
On Projects on the Arduino Forum
On the Product itself through our Customer Support

Technical specs

Microcontroller
ATmega2560

Operating Voltage
5V

Input Voltage (recommended)
7-12V

Input Voltage (limit)
6-20V

Digital I/O Pins
54 (of which 15 provide PWM output)

Analog Input Pins
16

DC Current per I/O Pin
20 mA

DC Current for 3.3V Pin
50 mA

Flash Memory
256 KB of which 8 KB used by bootloader

SRAM
8 KB

EEPROM
4 KB

Clock Speed
16 MHz

Length
101.52 mm

Width
53.3 mm

Weight
37 g
