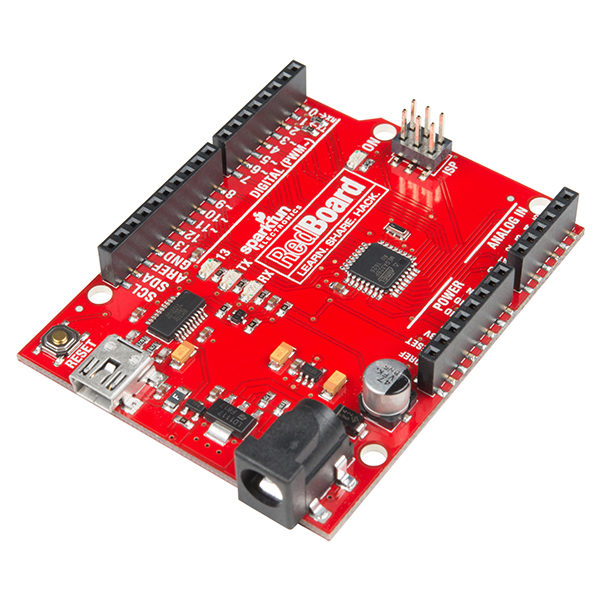

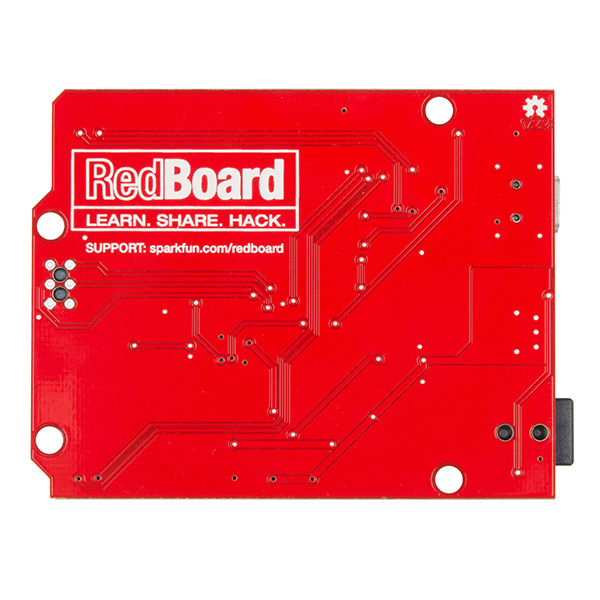

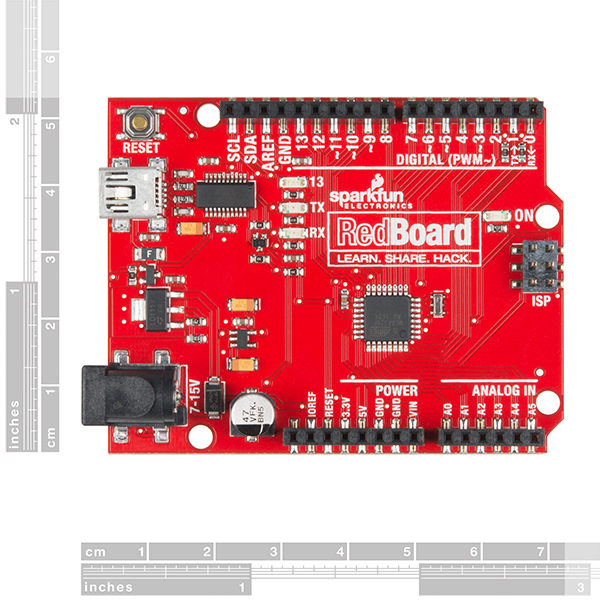

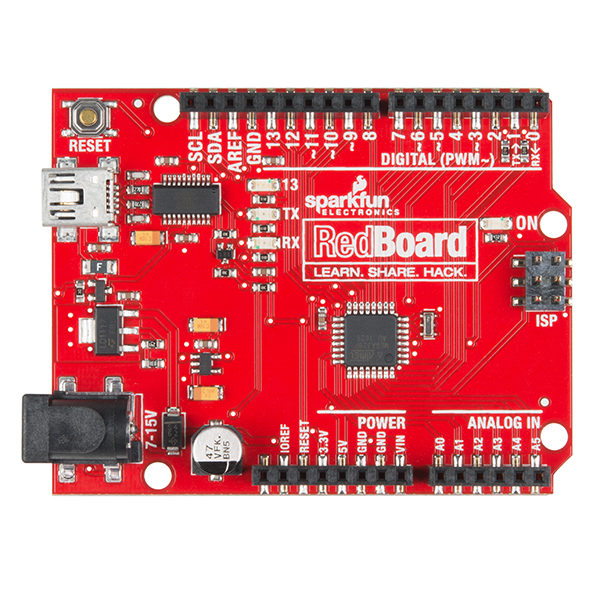

SparkFun RedBoard – Programmed with Arduino

Description

At SparkFun we use many Arduinos and we’re always looking for the simplest, most stable one. Each board is a bit different and no one board has everything we want, so we decided to make our own version that combines all our favorite features. The SparkFun RedBoard combines the simplicity of the UNO’s Optiboot bootloader (which is used in the Pro series), the stability of the FTDI (which we all missed after the Duemilanove was discontinued) and the R3 shield compatibility of the latest Arduino UNO R3.

The RedBoard can be programmed over a USB Mini-B cable using the Arduino IDE: Just plug in the board, select ?Arduino UNO? from the board menu and you’re ready to upload code. RedBoard has all of the hardware peripherals you know and love: 14 Digital I/O pins with 6 PWM pins, 6 Analog Inputs, UART, SPI and external interrupts. We’ve also broken out the SDA, SCL and IOREF pins that showed up on the UNO R3, so the RedBoard will be compatible with future shields. This version adds an SMD ISP header for use with shields.

You can power the RedBoard over USB or through the barrel jack. The on-board power regulator can handle anything from 7 to 15VDC. Check out the related items below for a compatible wall-wart power supply.

Not sure which Arduino or Arduino-compatible board is right for you? Check out our Arduino Buying Guide!

Features:

ATmega328 microcontroller with Optiboot (UNO) Bootloader
USB Programming Facilitated by the Ubiquitous FTDI FT231X
Input voltage – 7-15V
0-5V outputs with 3.3V compatible inputs
14 Digital I/O Pins (6 PWM outputs)
6 Analog Inputs
ISP Header
32k Flash Memory
16MHz Clock Speed
All SMD Construction
R3 Shield Compatible
Red PCB!

Documents:

Product page
Schematic
Eagle Files
FTDI Drivers
How to Install FTDI Drivers
Arduino IDE Download
Product Video
Hookup Guide
Graphical Datasheet
RedBoard vs Uno Comparison
GitHub (Design Files)
