J-Link EDU Mini Programmer
27,01 €
Informami quando l'articolo è disponibile.
- Description
- Additional information
- Features
- Documents
Description
The J-Link line of JTAG programmers from Segger is well known for their top of the line debuggers. The J-Link EDU Mini is a great option for those getting started with JTAG/SWD programming and debugging. Each J-Link EDU Mini is a version of the J-Link EDU Base in a reduced form factor with identical functionality for Cortex-M based targets. It has been designed to allow students and educational facilities as well as hobbyists access to top of the line debug probe technology.
With a microB USB port on one end, and a 2×5 SWD connector on the other end, just plug in the included cable and connect to your favorite ARM board to get started.
Note: This unit is for Educational and Home Hobby Use Only. Please be sure that you agree to these terms before purchasing: Terms of use. If you require commercial use, please check out our related products for other programmers such as the J-Link BASE Compact.

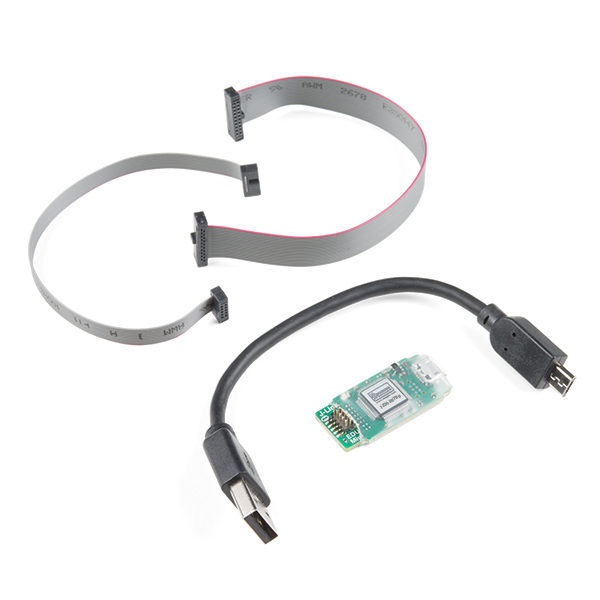

INCLUDES:
J-Link EDU Mini
0.05″ 20-pin ribbon cable
0.05″ 10-pin ribbon cable
MicroB USB cable
Additional information
| Weight | 0,1 kg |
|---|---|
| Dimensions | 5 × 8 × 1 cm |
| BRAND | Sparkfun |
| Produttore | Melopero Electronics |
| MPN | PGM-15345 |
- Unlimited Breakpoints
- Free Software updates
- Supports concurrent access to CPI by multiple applications
- Crossplatform support (Windows, Linux, macOS)
- Linux and Mac versions are limited to J-Link Commander, command line GDBServer, shared library (DLL equivalent)
- Size: 35mm x 17mm x 8mm
- Weight: 5g
- Target interface voltage (3.3V)
- JTAG speed: Max 4MHz
- SWO sampling frequency: Max 4MHz
- Data input rise time and fall time: <=20ns
- Data output rise time and fall time: <=10ns
- Clock rise time and fall time: <=10ns
