Melopero Perpetuo Lora

Description

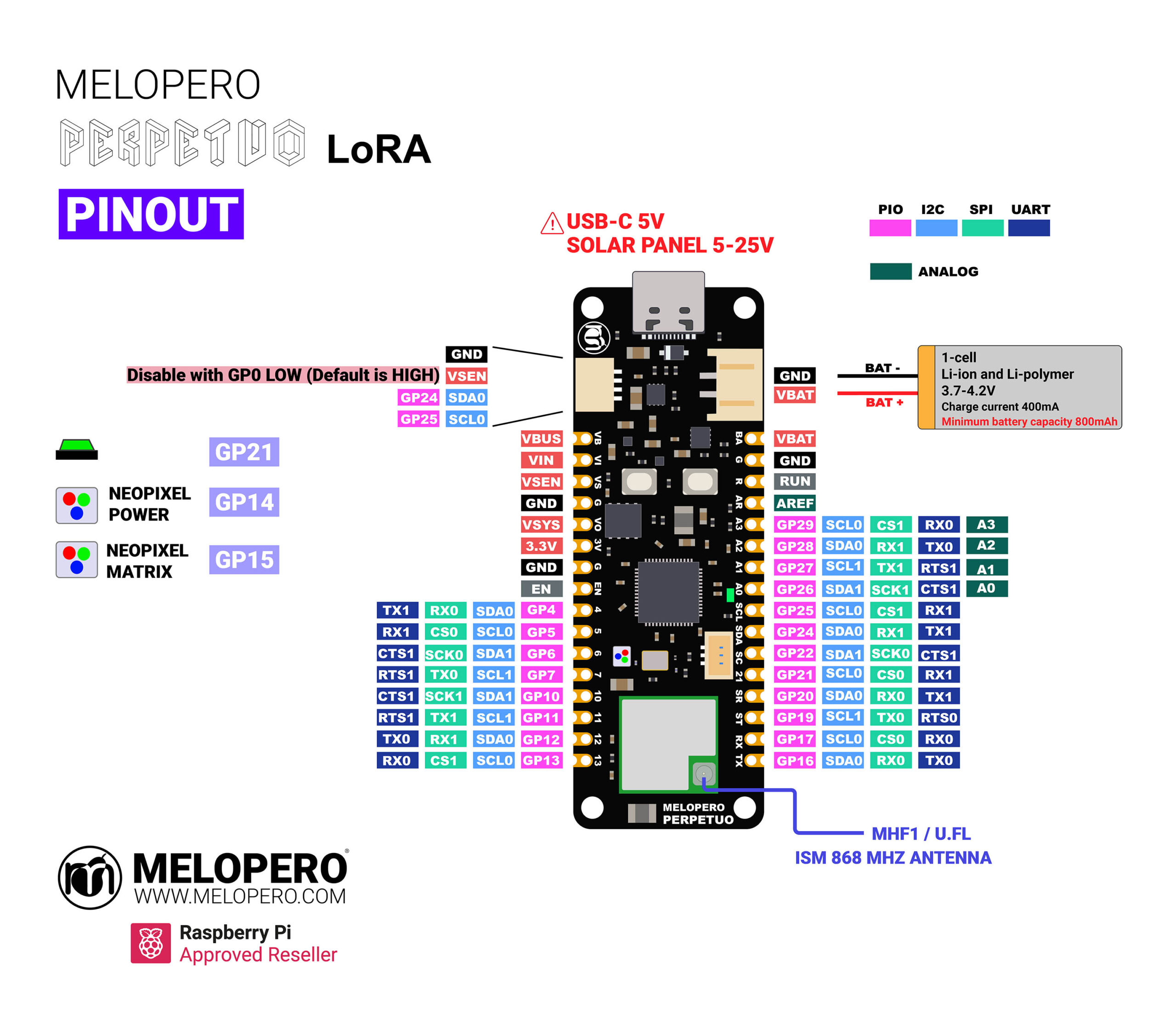

Download the board pinout

Get Software, Examples and Documentation

Melopero Perpetuo LoRa is an advanced electronic board built around the powerful Raspberry Pi RP2350 microcontroller. It integrates a LoRa radio module (EMB-LR1276S from Embit S.r.l.), enabling robust wireless communication capabilities.

Designed with sustainability in mind, the board includes a sophisticated LiPo battery charger that can be seamlessly connected to a small solar panel. This feature. allows Melopero Perpetuo to run indefinitely on solar power and a compact battery, making it perfect for off-grid projects.

Key features of Melopero Perpetuo include:

• Raspberry Pi RP2350 Dual Cortex-M33 or Hazard3 microcontroller
• LoRa Module with Low Power Mode: Operates in the 868 MHz carrier frequency, providing efficient long-range communication while conserving energy.
• LiPo battery charger with power path: can recharge the battery from a power supply, a USB port or a small solar panel.
• Dual Voltage Regulators: Ensure stable power supply for various components.
• Qwiic Connector for Sensors: Facilitates easy connection of a wide range of sensors, powered by a dedicated, disable-able voltage regulator to save energy when not in use.
• 8MB of flash memory
• User and RGB LED: Includes a user LED and a WS2812C RGB LED (Neopixel) for visual indicators.
• USB-C Connector: Facilitates easy programming and power supply.
• Castellated Holes: Allow easy attachment to other PCBs for enhanced functionality.
• Versatile Breakout Pins: Provide a wide array of GPIO, bus peripherals, and power pins, offering flexibility for diverse applications.
• Debug Connector: Provides easy access for debugging and development purposes.
• Bootsel and Reset Buttons: Allow for quick and convenient control over board operations and firmware updates.

Melopero Perpetuo LoRa is a versatile and energy-efficient solution, ideal for developers looking to create innovative, sustainable, and wirelessly connected projects.

WARNING: The maximum charge current is set to 400 mA. We strongly recommend using a LiPo battery with a capacity of at least 800 mAh.
