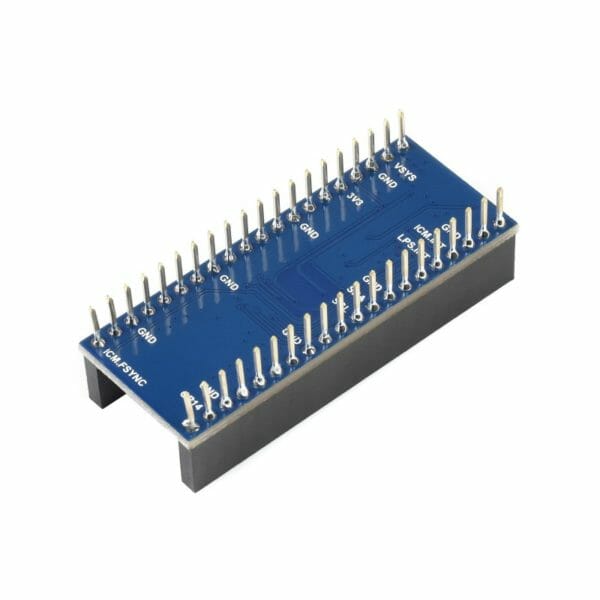

10-DOF IMU Sensor Module for Raspberry Pi Pico, Onboard ICM20948 and LPS22HB Chip
26,02 €
- Description
- Additional information
Description
The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer, baroceptor, and uses I2C bus for communication.
Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field
- Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Raspberry Pi Pico NOT included.
Documents
Demo Codes
Specifications
| OPERATING VOLTAGE | 5V |
|---|---|
| ACCELEROMETER | resolution: 16-bit measuring range (configurable): ±2, ±4, ±8, ±16g operating current: 68.9uA |
| GYROSCOPE | resolution: 16-bit measuring range (configurable): ±250, ±500, ±1000, ±2000°/sec operating current: 1.23mA |
| MAGNETOMETER | resolution: 16-bit measuring range: ±4900µT operating current: 90uA |
| BAROCEPTOR | measuring range: 260 ~ 1260hPa measuring accuracy (ordinary temperature): ±0.025hPa measuring speed: 1Hz – 75Hz |

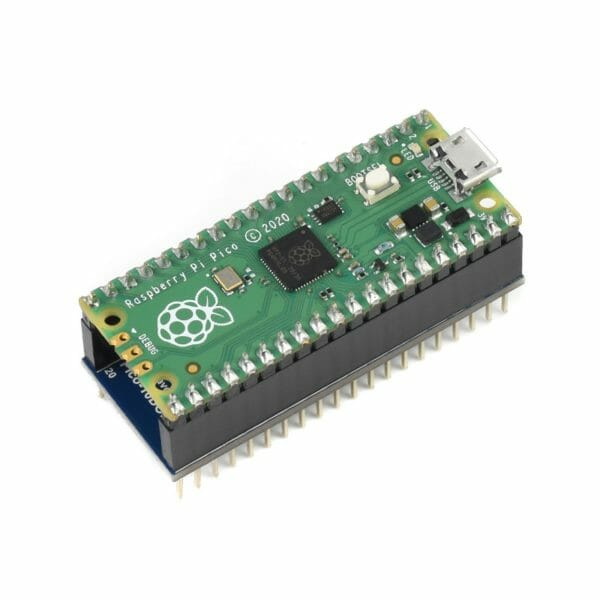

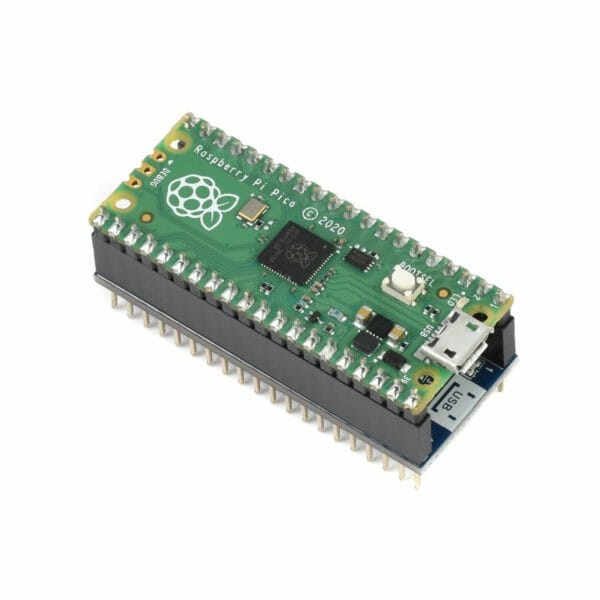

Raspberry Pi Pico Header Compatibility:
Additional information
| BRAND | Waveshare |
|---|---|
| MAINBOARD | Raspberry Pi Pico |
