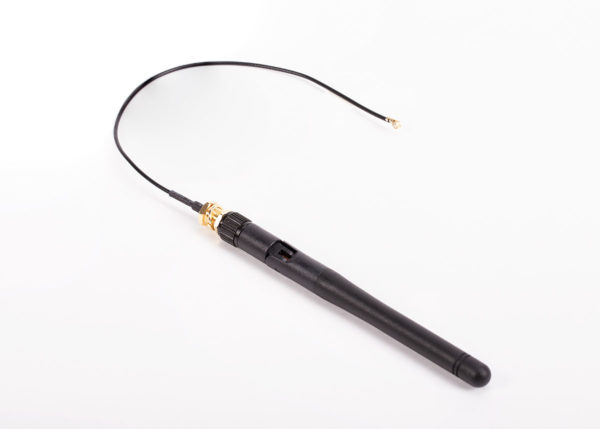

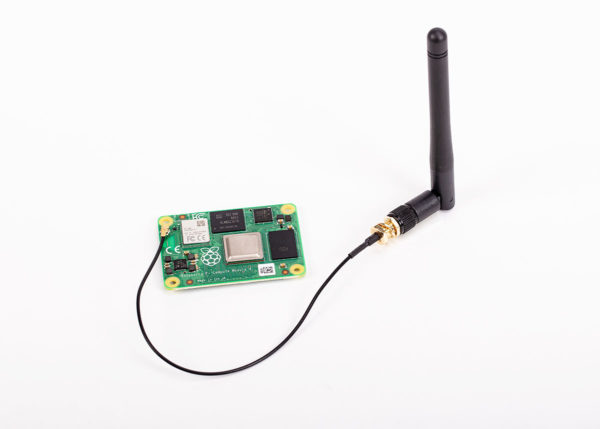

Compute Module 4 Antenna Kit
5,76 €
LEAD TIME: 8 WEEKS
- Description
- Additional information
Description
Certified for use with Raspberry Pi Compute Module 4.
Antenna specification
Frequency range: 2400-2500/5100-5800 MHz
Bandwidth: 100-700MHz
VSWR: ? 2.0
Gain: 2 dBi
Impedance: 50 ohm
Polarisation: Vertical
Radiation: Omnidirectional
Maximum power: 10W
Antenna dimensions: 108 mm × 10 mm
Documents
Raspberry Pi Compute Module 4 Antenna Kit product brief
Compliance
The Raspberry Pi Compute Module 4 Antenna Kit has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance.
Obsolescence Statement
Compute Module 4 Antenna Kit will remain in production until at least January 2020
Additional information
| Weight | 0,1 kg |
|---|---|
| Dimensions | 5 × 1 × 1 cm |
| BRAND | Raspberry Pi |
| MAINBOARD | Compute Module 4 |
