2-CH Triac HAT for Raspberry Pi, Integrated MCU, UART / I2C
18,59 €

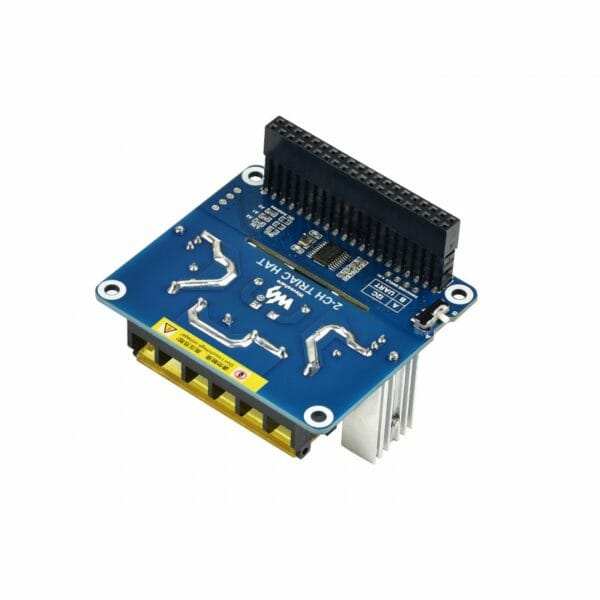

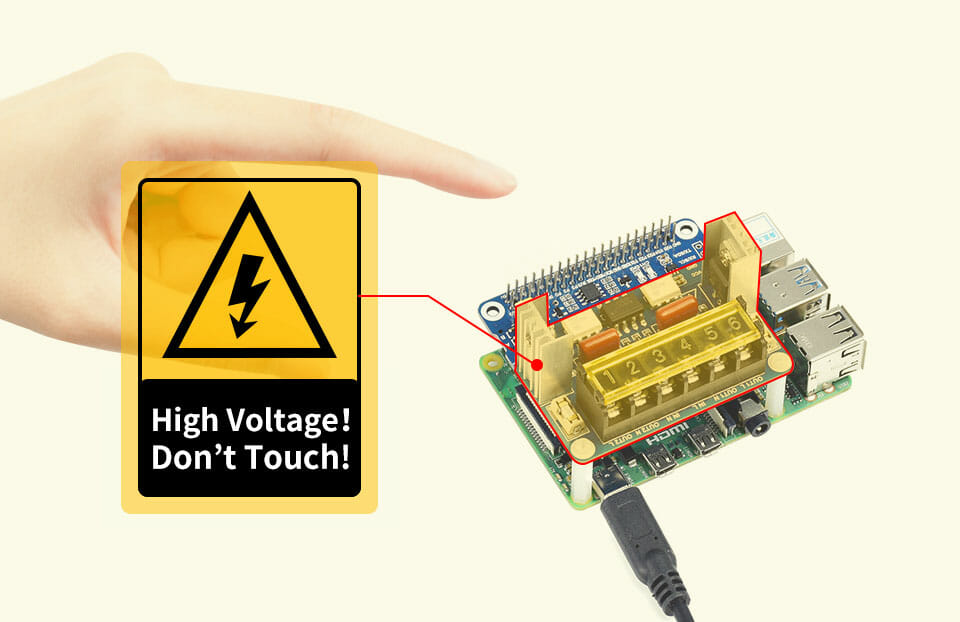

WARNING ELECTRICAL SHOCK HAZARD: This is a relay device and the circuits are exposed. DO NOT touch the components onboard! We recommend you to add insulate enclosure when using
- Description
- Additional information
- Specitfications
Description
WARNING ELECTRICAL SHOCK HAZARD: This is a relay device and the circuits are exposed. DO NOT touch the components onboard! We recommend you to add insulate enclosure when using
Dual Channels Triac HAT
Bidirectional SCR Isolated HAT, Dual Channels Triac Output Control
FEATURES AT A GLANCE
- STM32F0 MCU controller, requires minimal Raspberry Pi resource, UART / I2C communication
- RC snubber circuit, protect the triac from power fluctuation
- Up to 4400W output power, under ideal heat dissipation condition
- Optocoupler isolation, preventing interference from the high voltage circuit
- Indicator for easy checking the status of triac
- Reserved UART and I2C interface, for working with other host control boards
- Data rate: up to 921.6kbps for UART，up to 1024kbps for I2C
- Comes with development resources and manual (examples in C and Python)

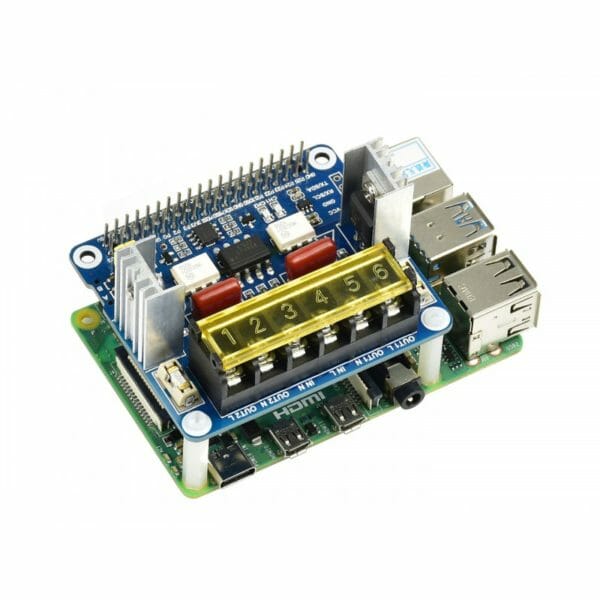

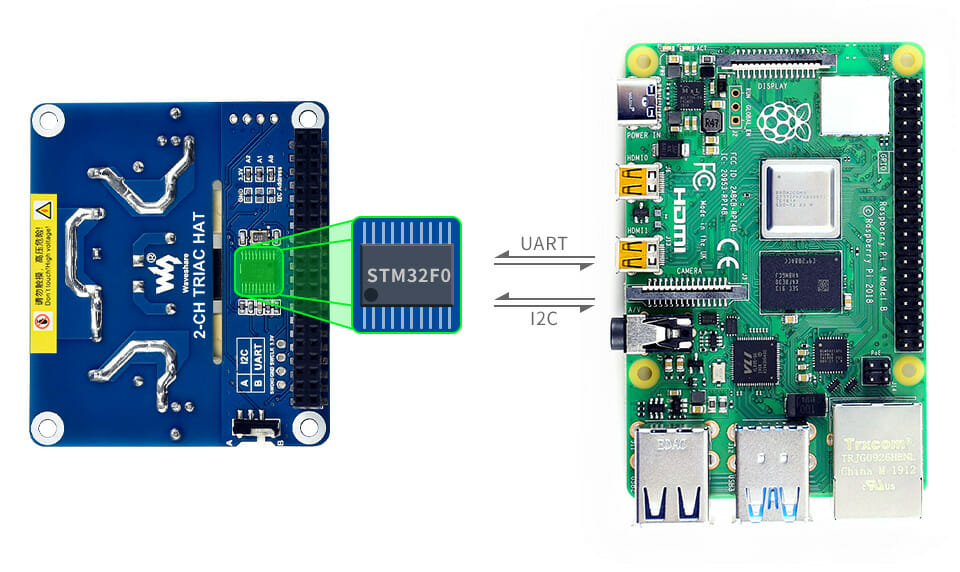

STM32F0 MCU Onboard
Integrates STM32F030 MCU, Supports Directly Command Control, Easy For Developping
Quicker Response, Requires Minimal Resource From The Raspberry Pi

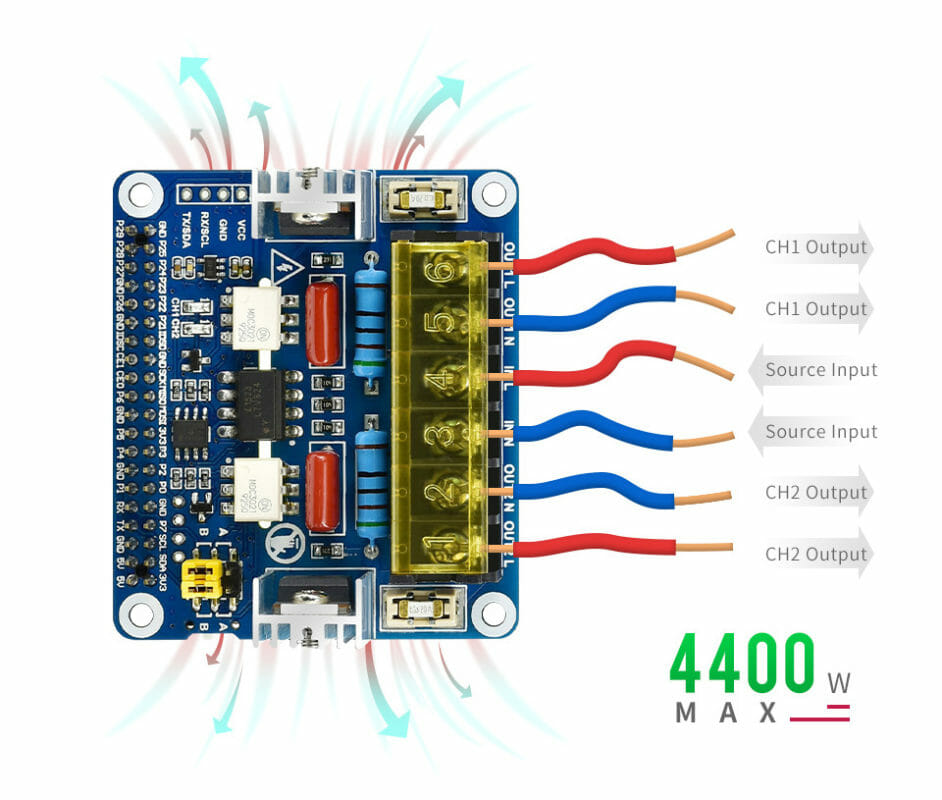

Powerful Output Power
Up To 4400W Output Power, Under Ideal Heat Dissipation Condition

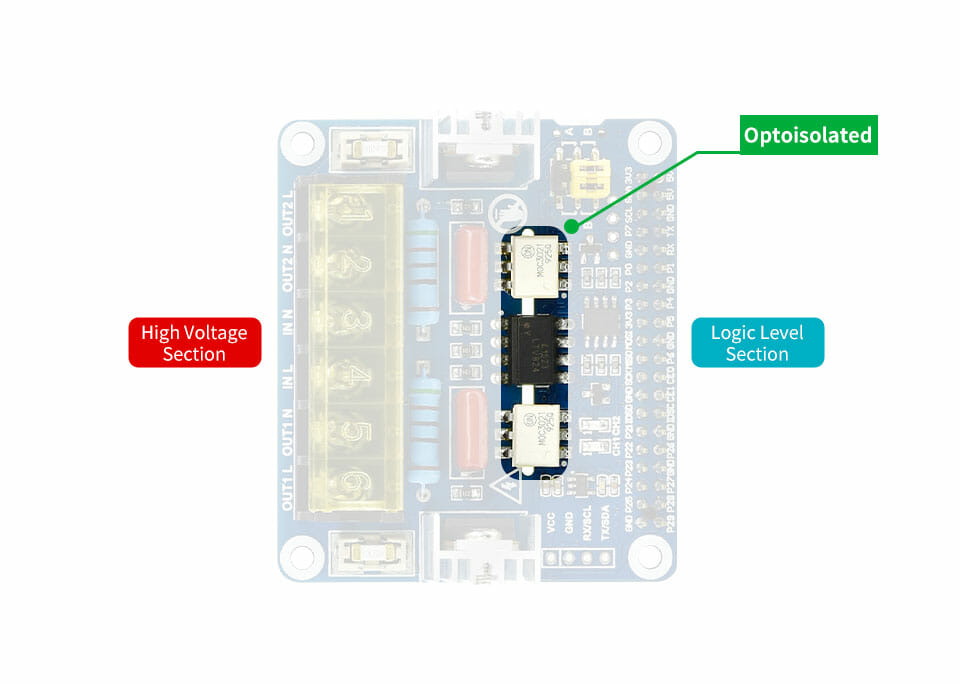

Optocoupler Isolation Safety First!
Optoisolated Solution, Preventing Interference From The High Voltage Circuit

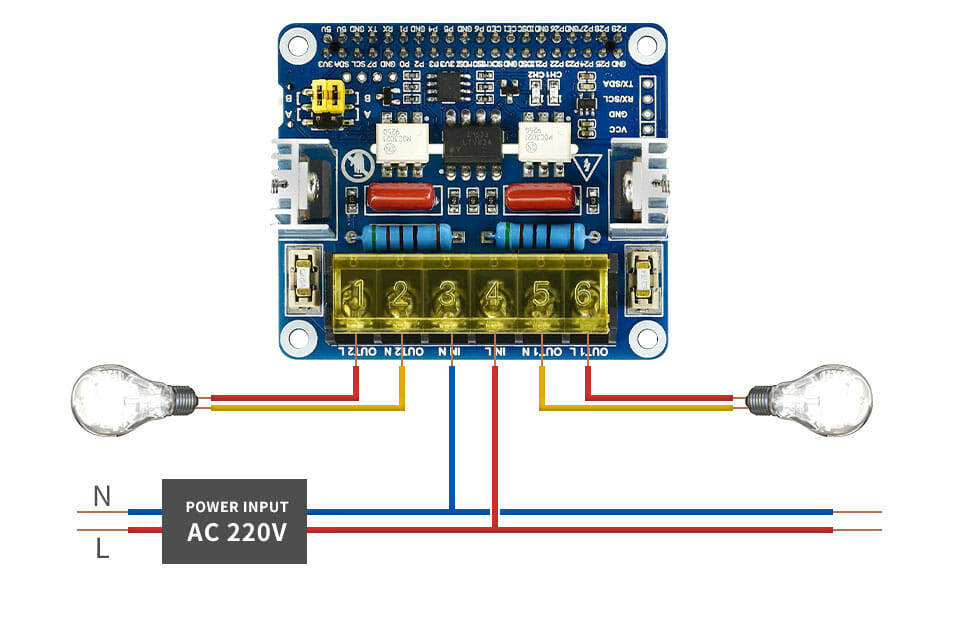

Home Appliance Support
In The Example Of Controlling 220VAC Home Appliances

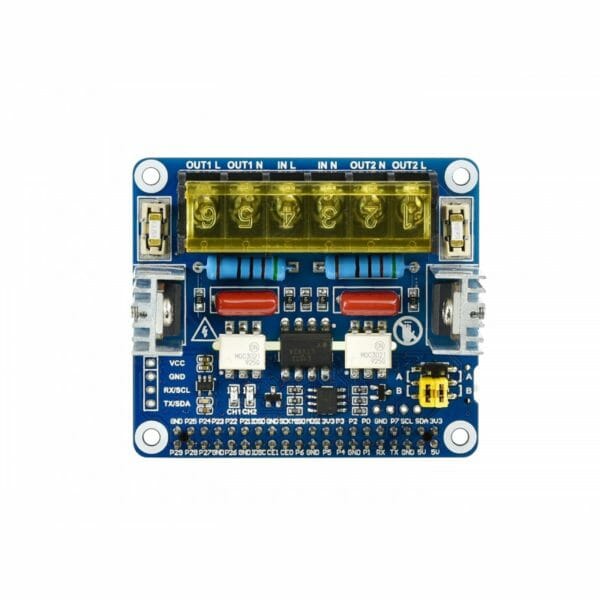

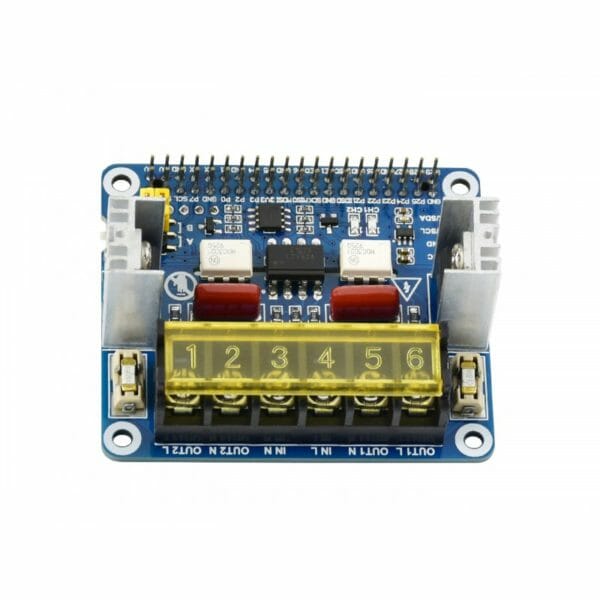

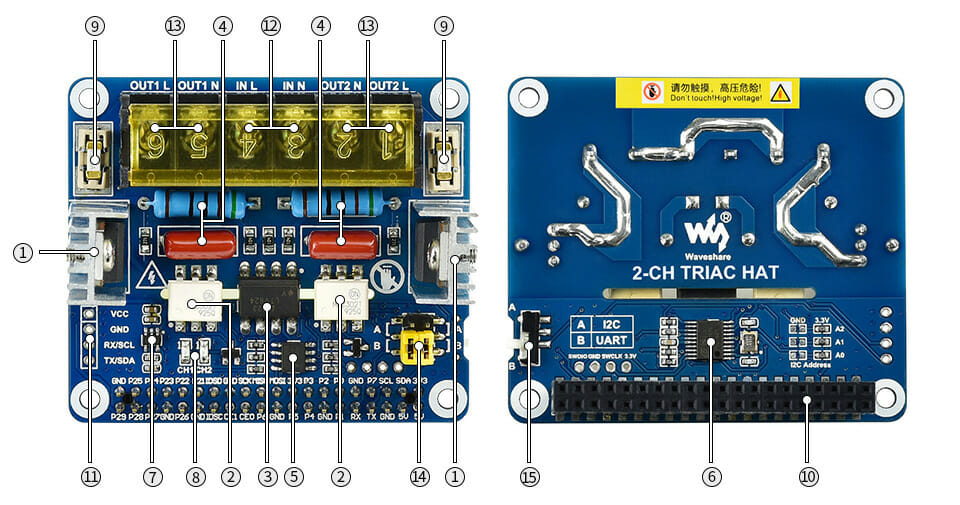

What’s On Board
- BTA24-600 high power bidirectional triac
- MOC3021S photocoupler, the triac driver
- LTV-824S AC photocoupler
- RC snubber circuit
- LM358DR OP amplifier
- STM32F030F4P6 main controller
- RT9193-33PB power chip
- Output indicator
- 20A blow fuse
- Standard Raspberry Pi 40PIN GPIO header
- MCU control interface, for use with other host control boards like Arduino
- AC input
- AC output

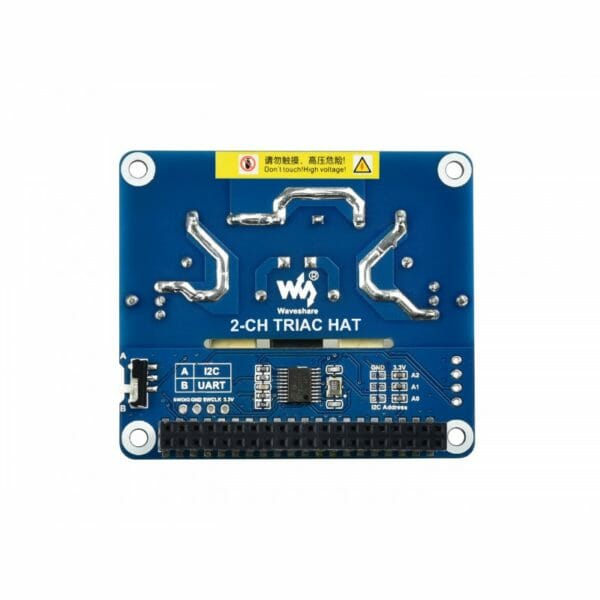

- Data bus selection
A: use Raspberry Pi I2C bus
B: use Raspberry Pi UART bus - Mode selection
A: I2C mode
B: UART mode

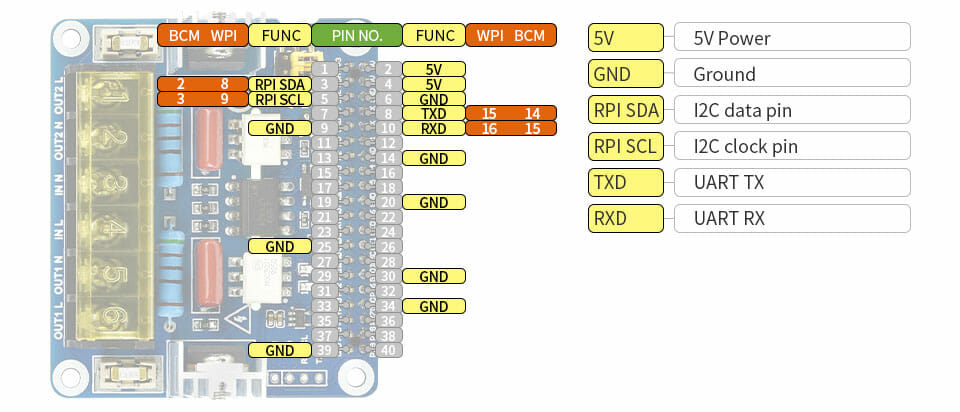

Pinout
Resources
Demo codess
Documents
Additional information
| BRAND | Waveshare |
|---|
Specifications
| AC VOLTAGE | 100 ~ 600V | UART DATA RATE | 1.2 ~ 921.6 kbps |
|---|---|---|---|
| AC CURRENT | 0~20A | I2C DATA RATE | 1024 kbps |
| CONTROLLER | STM32F030 | LOGIC LEVEL VOLTAGE | 3.3V/5V |
| COMMUNICATION BUS | I2C/UART | DIMENSIONS | 65 × 56.5(mm)
|
