Scroll pHAT HD

Description

What if Scroll pHAT had twice times as many pixels and individual pixel brightness control? Scroll pHAT HD, that's what!!

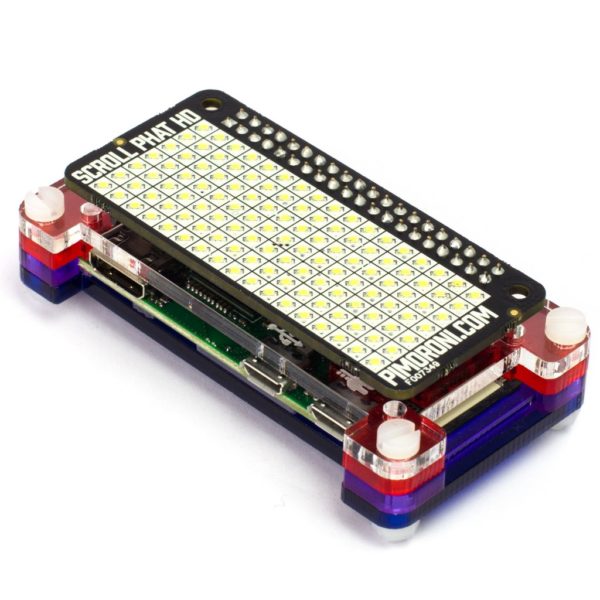

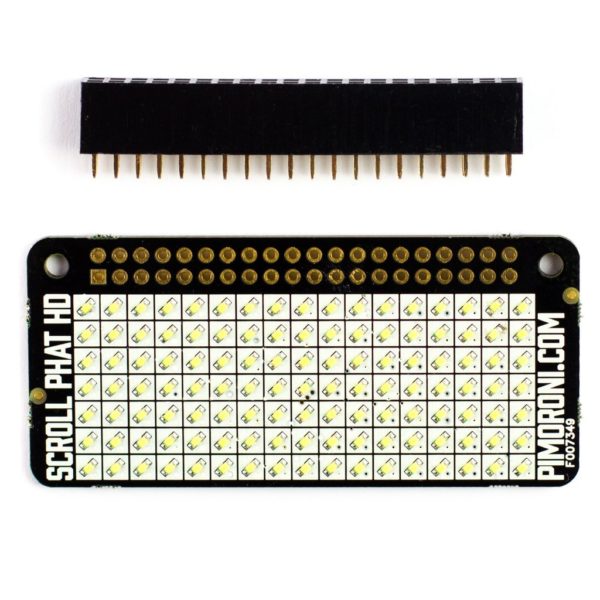

Scroll pHAT HD packs 17×7 bright white pixels (119 total) onto a single pHAT, and gives you full PWM brightness control over each pixel. Create beautiful animations and even anti-aliased text by taking advantage of the per-pixel brightness.

Use Scroll pHAT HD as a scrolling message display for your tweets, the weather or the news, or use it as a 17-band spectrum analyser for your audio. There's even enough pixels for simple games like Tetris, Pong, or snake.

Features

17×7 matrix of bright white pixels (119 total)
Individual PWM brightness control of each pixel
Uses the IS31FL3731 LED matrix driver chip
Scroll pHAT HD pinout
Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W
Python library
Female header requires soldering

Software

Our handy one-line installer will install the Scroll pHAT HD Python library for you. We've included a bunch of examples too, to show off what you can do with Scroll pHAT HD.

Documents:

Product page
Python library

Tutorials:

Soldering Pi Zero pHATs
A quick tutorial on soldering Pi Zero pHATs

Beginner / Raspberry Pi

Getting Started with Scroll pHAT HD
Learn how to install and get started with your Scroll pHAT HD
