Unicorn pHAT

Description

What's going to protect your beloved Raspberry Pi from an onslaught of rainbow-coloured fusion? That's right, it's Unicorn pHAT.

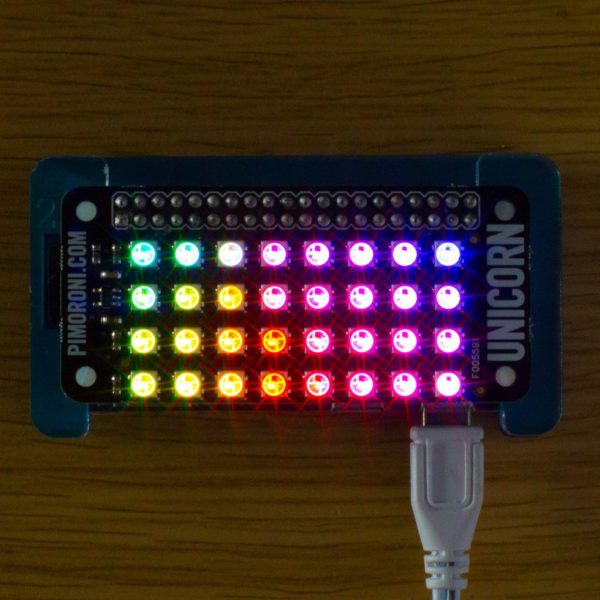

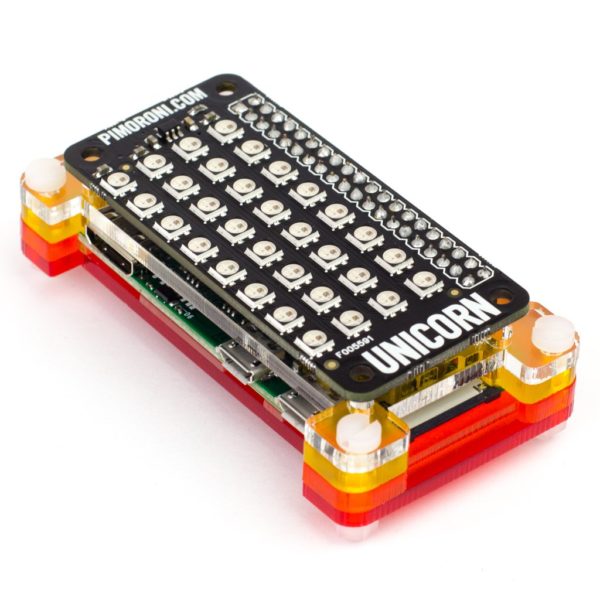

Sporting a matrix of 32 (8 x 4) RGB LEDs and powered directly from the Pi, this is the most compact pocket aurora available.

Unicorn pHAT provides a wash of controllable colour that is ideal for mood-lighting, pixel art, persistence of vision effects, status indications, or just blasting colour into your surroundings.

Features

32 RGB LEDs (SK6218 – 3.5mm x 3.5mm)
LED data driven via DMA over PWM
Unicorn pHAT pinout
Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W
Python library
Female header requires soldering

Software

Unicorn pHAT uses the same Python library as Unicorn HAT, so it's super-easy to use, should automatically detect that you're using the pHAT and includes some examples written specially for Unicorn pHAT.

Notes

Warning: SK6218 LEDs are bright enough to cause eye pain, do not look at them directly when brightly lit. We recommend using Unicorn pHAT at lower brightness levels.
Photo-sensitivity warning: flashing, strobing, and patterns of lights may cause epileptic seizures. Always take care and immediately stop using if you feel unwell (dizziness, nausea, affected vision, eye twitching, disorientation).
Power: Unicorn pHAT works best with a >2A microUSB power supply for your Pi. We recommend the official Raspberry Pi power supply.
Compatibility (audio): as Unicorn pHAT uses PWM and GPIO18, it will interfere with analogue audio playback (random colour patterns and flickering). HDMI should work just fine! 😀

Documents:

Product page

Tutorials:

Getting Started with Unicorn Paint
Learn how to pixel paint mini works of art on your Unicorn HAT using your Pi and a web browser

Beginner / Unicorn HAT

Getting Started with Unicorn pHAT
Learn how to install and get started with your Unicorn pHAT
