SIM7080G NB-IoT / Cat-M(eMTC) / GNSS Module for Raspberry Pi Pico, Global Band Support
33,50 €
- Description
- Additional information
- Specifications
Description
SIM7080G NB-IoT / Cat-M / GNSS.
Module For Raspberry Pi Pico: NB-IoT, Cat-M(EMTC), And GNSS Positioning With Global Band Support.
Features At A Glance

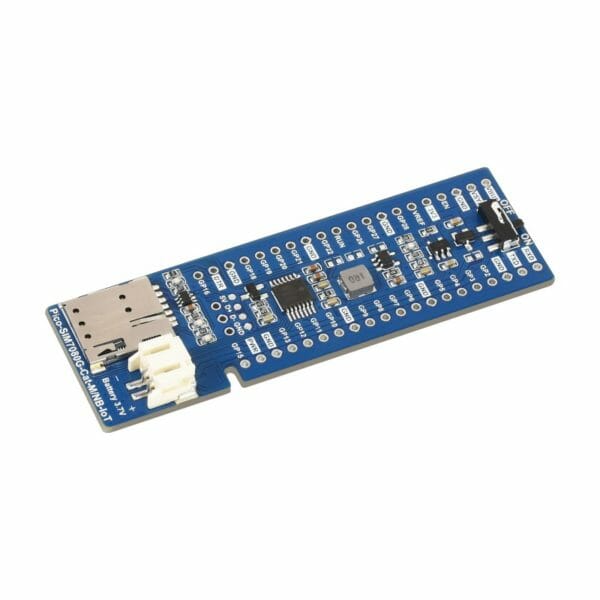

The Pico-SIM7080G-Cat-M/NB-IoT is an NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System) module designed for Raspberry Pi Pico. It supports multiple NB-IoT frequency band, can be controlled via serial AT commands, and supports communication protocols like HTTP/MQTT/LWM2M/COAP, etc. Due to the advantages of low delay, low power, low cost, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, and so on.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- UART communication, serial AT commands control
- Communication protocol support: TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT…
- GNSS positioning support: GPS, GLONASS, BeiDou, and Galileo
- Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery, or recharging it in turn
- 2x LED indicators, for monitoring the module operating status
- Onboard Nano SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
- Comes with development resources and manual (MicroPython examples)
Package Content:
- Pico-SIM7080G-Cat-M/NB-IoT x1
- LTE antenna x1

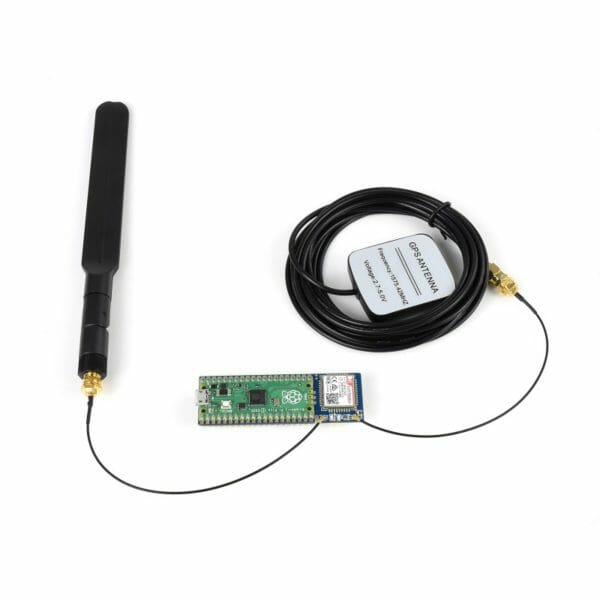

- GPS antenna x1
- 20PIN female pin header x2
- 40PIN male pin header × 1
- 3.7V rechargeable Li-po battery x1
Resources
Pinout:
Additional information
| BRAND | Waveshare |
|---|---|
| MAINBOARD | Raspberry Pi Pico |
Specifications
| SIM868 | SIM7080G | SIM7020E | |
|---|---|---|---|
| Applicable region | most countries/regions | global applicable | Asia, Europe, Africa, Australia |
| FREQUENCY BAND | |||
| NB-IoT | N/A | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/ B20/B25/B26/B28/B66/B71/B85 |
LTE-FDD: B1/B3/B5/B8/B20/B28 |
| Cat-M | N/A | B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/ B19/B20/B25/B26/B27/B28/B66/B85 |
N/A |
| 2G | GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz |
N/A | N/A |
| GNSS | GPS, GLONASS, BeiDou | GPS, GLONASS, BeiDou, Galileo | N/A |
| DATA RATE | |||
| NB-IoT(Kbps) | – | 136(DL)/150(UL) | 26.15(DL)/62.5(UL) |
| Cat-M(Kbps) | – | 589(DL)/1119(UL) | – |
| 2G(Kbps) | 85.6(DL)/85.6(UL) | – | – |
| OTHERS | |||
| Communication protocol | TCP/UDP/HTTP/SSL/FTP /POP3/SMTP/MQTT… |
TCP/UDP/HTTP/HTTPS/TLS/DTLS /PING/LWM2M/COAP/MQTT… |
|
| Power supply | External Li-po battery OR Raspberry Pi Pico USB port | ||
| Battery interface | 3.7V ~ 4.2V | ||
| Logic level | 3.3V | ||
| Module standalone current | Idle mode: 12mA | Idle mode: 10mA | Idle mode: 5.6mA |
| Sleep mode: 0.65mA | Sleep mode: 1.2mA | Sleep mode: 0.4mA | |
| Backup mode: 8uA | PSM mode: 3.2uA | PSM mode: 3.4uA | |
| Audio input/output | onboard microphone, with speaker header |
N/A | |
| Indicator | NET: network indicator Charge: recharge indicator |
||
| Switch | Li-po battery and USB power supply switch | Li-po battery power supply switch | |
| SIM card | 2G SIM card (1.8V / 3V) | NB-IoT / Cat-M card (1.8V ONLY) | NB card (1.8V / 3V) |
| Antenna connector | LTE, GNSS, BT | LTE, GNSS | LTE |
| Dimensions | 76.15 × 24.00mm | 73.5 × 24.00mm | |
