Raspberry Pi POE HAT for Raspberry Pi 3 B+ and Raspberry Pi 4

Description

The PoE HAT

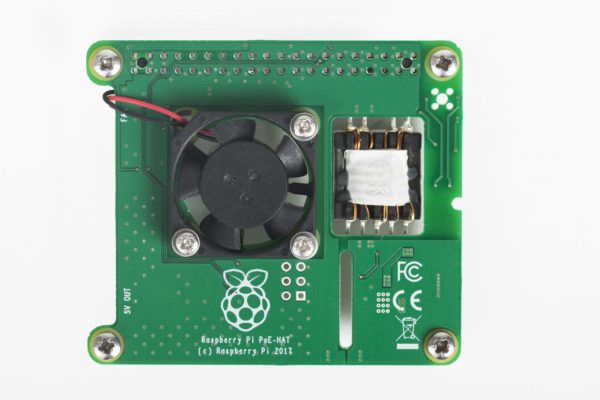

The Raspberry Pi Power over Ethernet HAT is a small accessory for the Raspberry Pi computer. It can only be used with the Raspberry Pi 3 Model B+ (launched March 2018) and the Raspberry Pi4. The PoE HAT allows you to power your Raspberry Pi using Power over Ethernet-enabled networks; for this product to be used, the network it is connected to needs to have power-sourcing equipment installed.

Supplied with this product

Raspberry Pi PoE HAT
Mechanical spacers

Other hardware needed

A Raspberry Pi 3 Model B+ or a Raspberry Pi 4
An Ethernet cable
Power-sourcing equipment for a 802.3af Power over Ethernet network

Connecting your PoE HAT to the Raspberry Pi

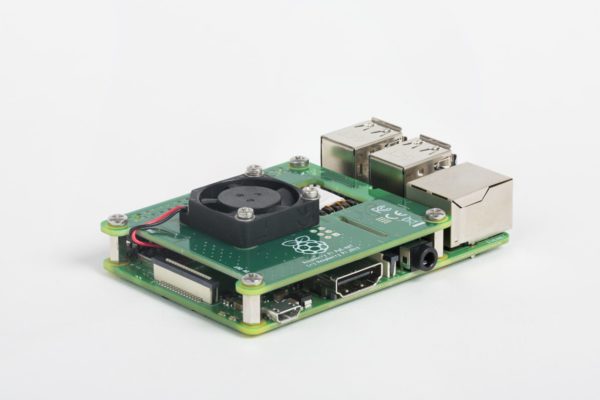

Before installing the PoE HAT, you must attach the supplied spacers in the four corners of the board

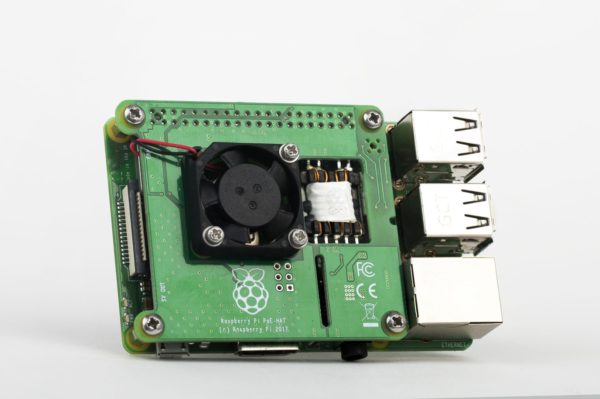

Then connect the Raspberry Pi PoE HAT to the two 0.1? headers (40 + 4) that are fitted on the Raspberry Pi
Once the PoE HAT board is connected, you can power the Raspberry Pi through its RJ45 network connector

Additional information

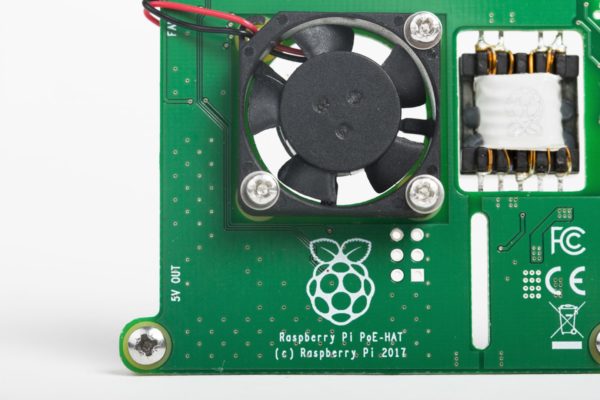

No modification to the main Raspberry Pi board is needed for this product to work. Please ensure that your Raspberry Pi’s software is up to date for all functionality to be available. The PoE HAT is fitted with a small fan that is controlled by the Raspberry Pi via I2C. The fan will turn on and off automatically depending on the temperature of the main processor on the Raspberry Pi.
