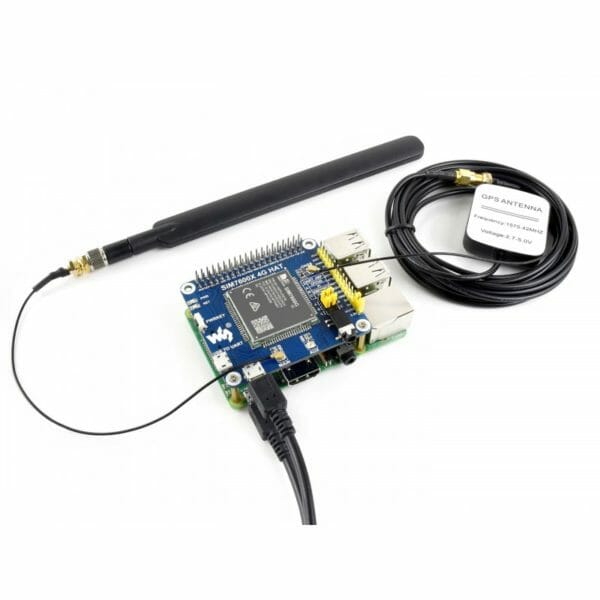

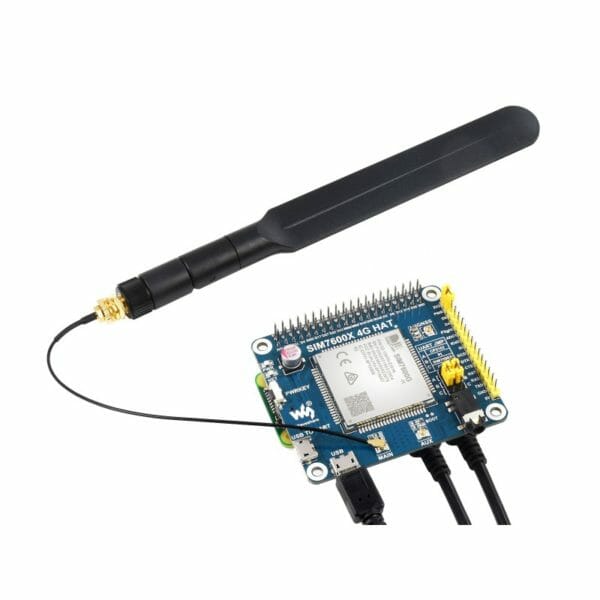

SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band
87,27 €
- Description
- Additional information
- Specifications
Description
4G HAT FOR RASPBERRY PI.
Enabling LTE Cat-4 4G / 3G / 2G Communication & GNSS Positioning.
Based on SIM7600G-H, Global Band.
Features At A Glance

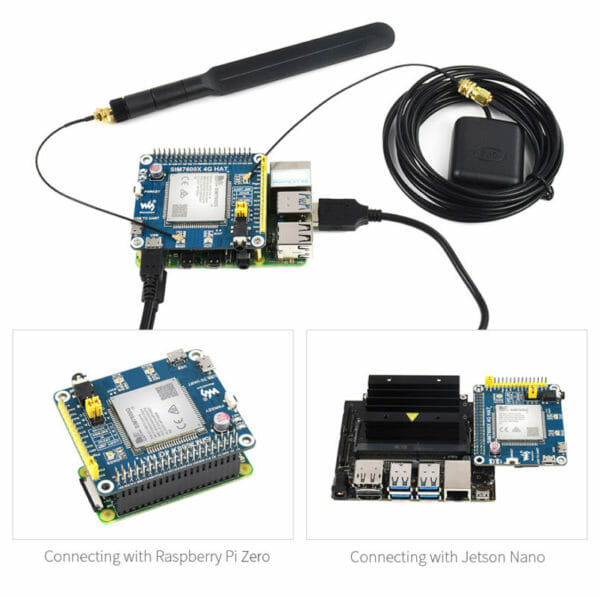

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, LBS base station positioning
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Onboard CP2102 USB to UART converter, for serial debugging
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- SIM card slot, supports 1.8V/3V SIM card
- TF card slot for storing data like files, messages, etc.
- Onboard audio jack and audio decoder for making telephone call
- 2x LED indicators, easy to monitor the operating status
- Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

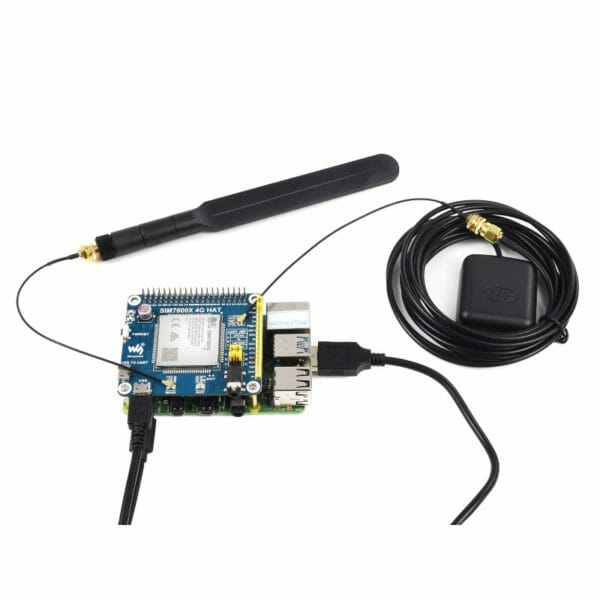

Package Content:
- SIM7600G-H 4G HAT x1
- LTE Antenna x1
- GPS External Antenna (B) x1
- USB type A plug to micro plug cable x2
- RPi screws pack (2pcs) x1

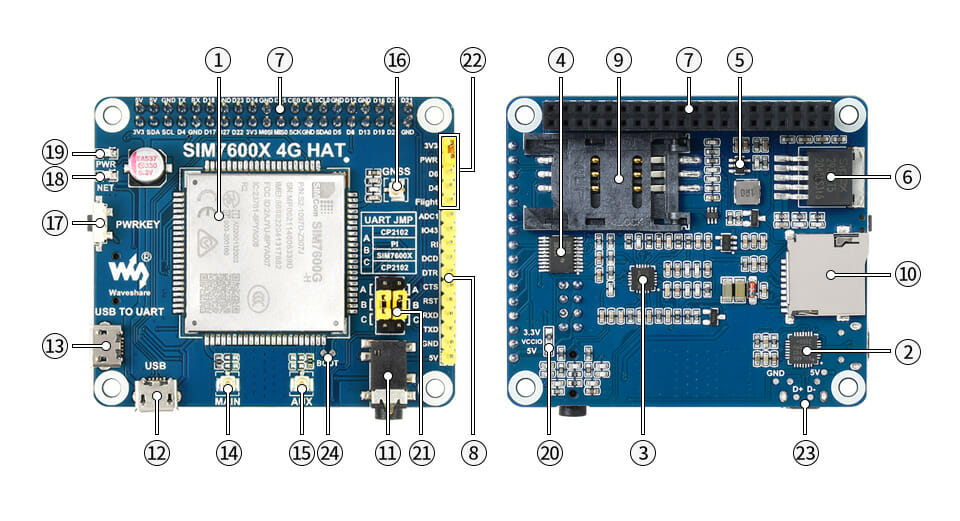

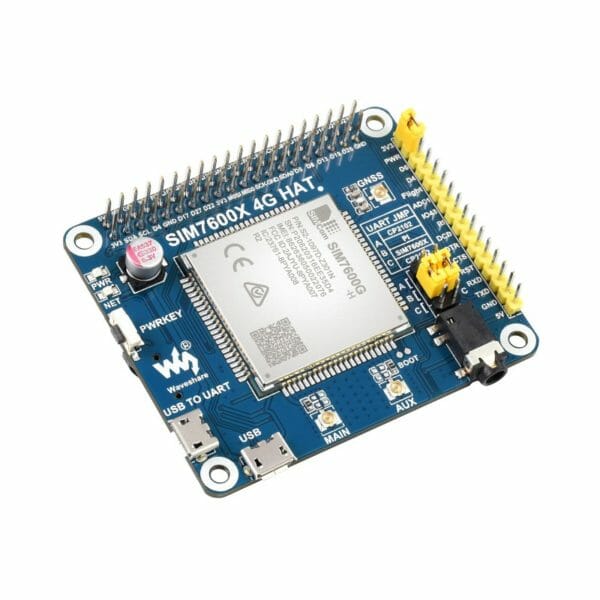

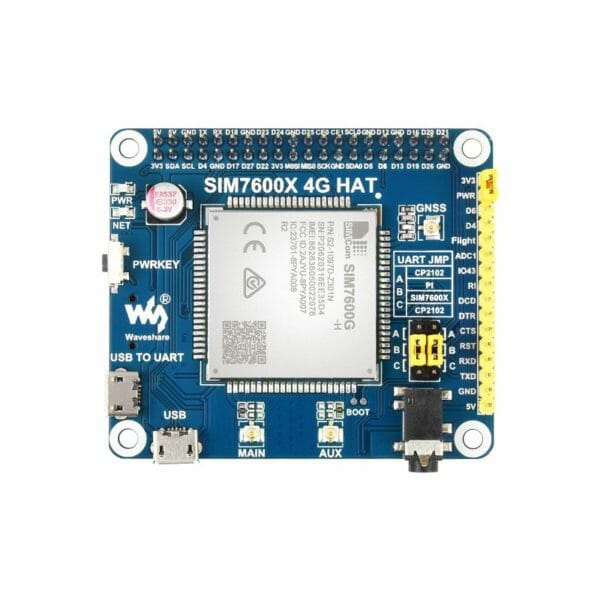

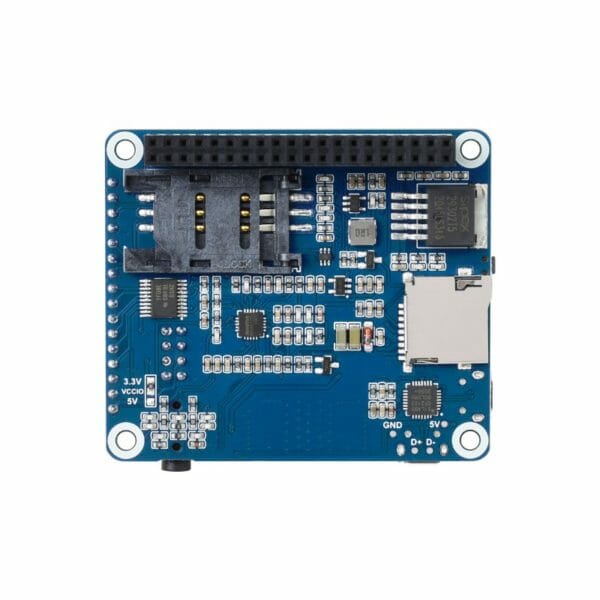

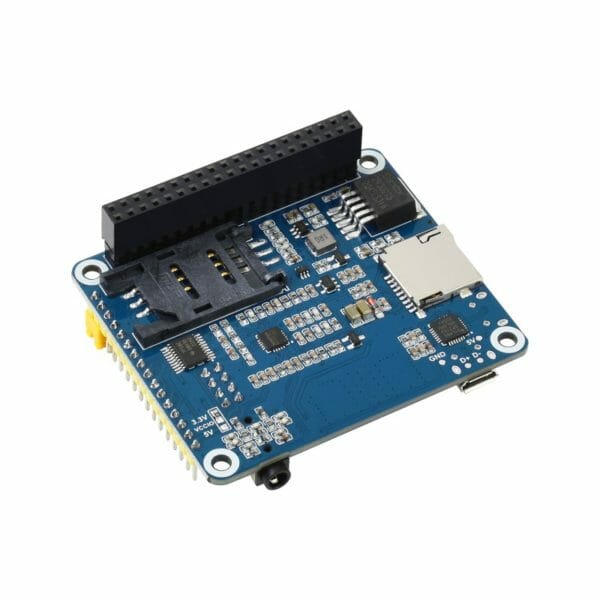

What’s On Board
- SIM7600G-H
- CP2102 USB to UART converter
- NAU8810 audio decoder
- TXS0108EPWR voltage translator
translates 3.3V/5V into 1.8V - MP2128DT power chip
- SPX29302 power chip
- Raspberry Pi GPIO header
- SIM7600 control interface
for connecting with host boards like Arduino/STM32 - SIM card slot
supports 1.8V/3V SIM card - TF card slot
allows data storage like files, messages, etc. - 3.5mm earphone/mic jack
- USB interface
for testing AT Commands, getting GPS positioning data, etc. - USB to UART interface
for serial debugging, or login to Raspberry Pi
- MAIN antenna connector
- AUX antenna connector
- GNSS antenna connector
- Power switch
- Network status indicator
- Power indicator
- Operating voltage selection jumper
configured via 0Ω resistor jumper
VCCIO – 3.3V: set operating voltage as 3.3V
VCCIO – 5V: set operating voltage as 5V - UART selection jumper
A: access Raspberry Pi via USB to UART
B: control the SIM7600 by Raspberry Pi
C: control the SIM7600 via USB to UART - PWR configuration jumper
PWR – 3V3: auto startup on power-up (default)
PWR – D6: startup/shutdown by the Raspberry Pi D6 pin
Flight mode configuration jumper
NC by default, no flight mode control pin
Flight – D4: flight mode is controlled by the Raspberry Pi D4 pin - USB connector solder pads
- BOOT forced programming solder pads
Resources

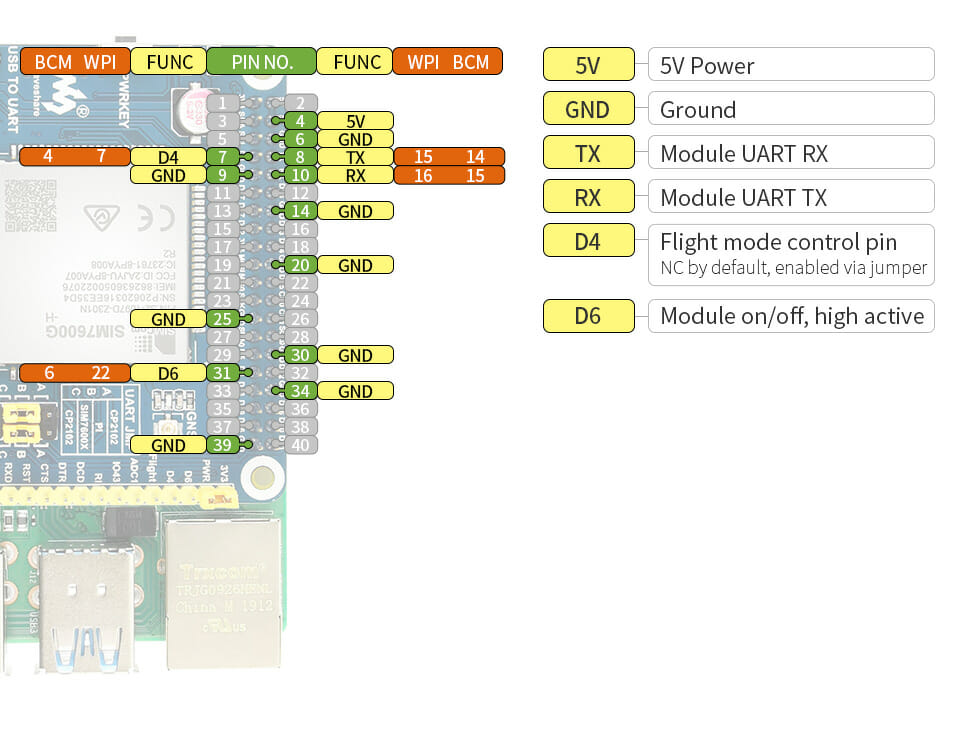

Pinout
Additional information
| BRAND | Waveshare |
|---|
Specifications
| FREQUENCY BAND | |
|---|---|
| LTE Cat-4 | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD: B34/B38/B39/B40/B41 |
| 3G | UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 |
| 2G | GSM/GPRS/EDGE: 850/900/1800/1900 MHz |
| GNSS | |
| Satellite systems | GPS/Beidou/GLONASS |
| Receiver type | 16-channel |
| C/A Code | |
| Sensitivity | -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou) |
| Cold starts: -148 dBm | |
| Time-To-First-Fix (open air) | Cold starts: <35s |
| Hot starts: <1s | |
| SMS AND AUDIO | |
| SMS | Supported types: MT, MO, CB, Text, PDU |
| Storage: USIM card and ME (default) | |
| Audio feature | Supports echo cancellation |
| Supports noise reduction | |
| OTHER | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (configured via jumper) |
| Operating temperature | -30°C ~ 80°C |
| Storage temperature | -45°C ~ 90°C |

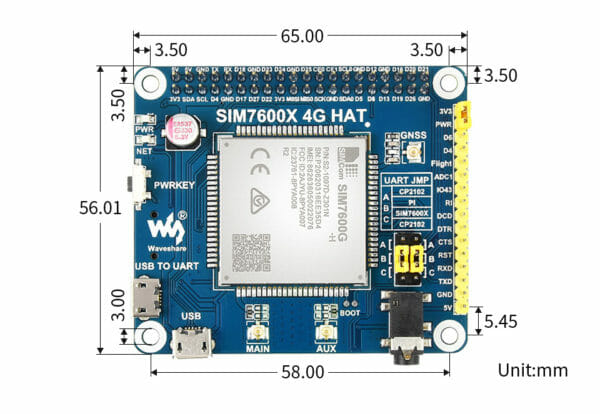

| Dimensions | 56.21mm × 65.15mm |
