Adafruit BME280 I2C or SPI Temperature Humidity Pressure Sensor
19,13 €
Il BME280 è il nuovo sensore ambientale per umidità, temperatura e pressione barometrica prodotto dalla Bosch. Insieme al BMP280, può essere considerato come l?evoluzione della serie BMP085/BMP180/BMP183. Comunica tramite I2C e SPI. È in grado di effettuare misurazioni con un?accuratezza assoluta di ±3% per l?umidità, ±1 hPa per la pressione e di ±1.0°C per la temperatura. Può essere utilizzato come altimetro con un?accuratezza di 1m. La scheda presenta un regolatore a 3.3V e un convertitore di livello e può funzionare con logica sia a 3V che a 5V.
- Description
- Additional information
Description
Bosch has stepped up their game with their new BME280 sensor, an environmental sensor with temperature, barometric pressure and humidity! This sensor is great for all sorts of weather/environmental sensing and can even be used in both I2C and SPI!
This precision sensor from Bosch is the best low-cost sensing solution for measuring humidity with ±3% accuracy, barometric pressure with ±1 hPa absolute accuraccy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter or better accuracy!
The BME280 is the next-generation of sensors from Bosch, and is the upgrade to the BMP085/BMP180/BMP183 – with a low altitude noise of 0.25m and the same fast conversion time. It has the same specifications, but can use either I2C or SPI. For simple easy wiring, go with I2C. If you want to connect a bunch of sensors without worrying about I2C address collisions, go with SPI.

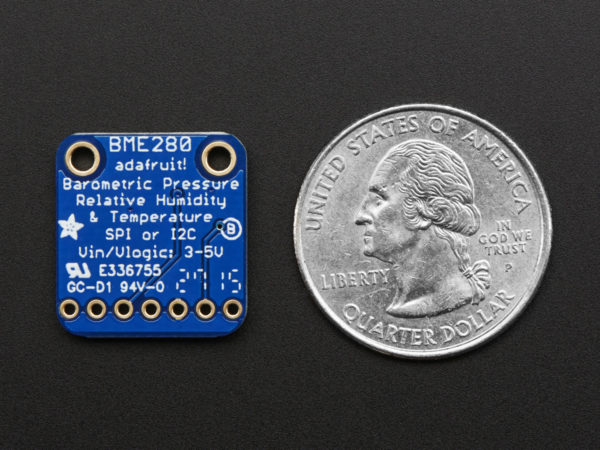

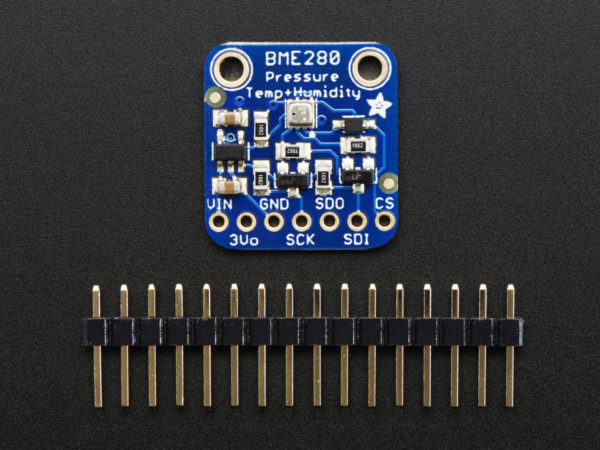

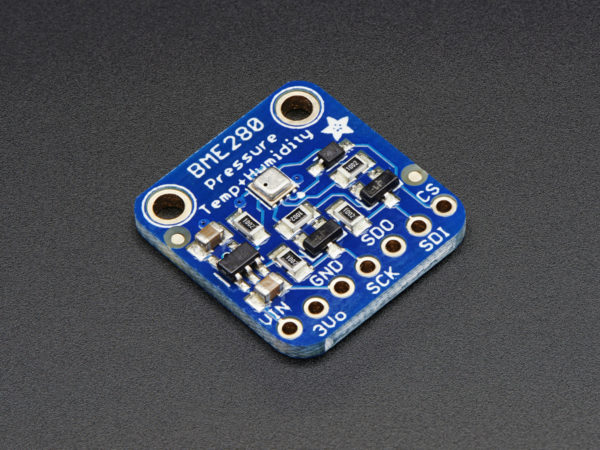

Nice sensor right? So we made it easy for you to get right into your next project. The surface-mount sensor is soldered onto a PCB and comes with a 3.3V regulator and level shifting so you can use it with a 3V or 5V logic microcontroller without worry. We even wrote up a nice tutorial with wiring diagrams, schematics, libraries and examples to get you running in 10 minutes!
Datasheet
Product Dimensions: 19.0mm x 18.0mm x 3.0mm / 0.7″ x 0.7″ x 0.1″
Product Weight: 1.0g/0.0oz
TUTORIAL:
Adafruit BME280 Humidity + Barometric Pressure + Temperature Sensor Breakout
Additional information
| Weight | 0,05 kg |
|---|---|
| Dimensions | 5 × 1 × 3 cm |
| BRAND | Adafruit |
